The CELUS Design Canvas is the central interactive workspace in the CELUS Design Studio where engineers can visually plan, structure, and connect functional blocks for an electronics project from high‑level architecture down to detailed interconnections. It streamlines the workflow by enabling creation of block diagrams, generating a Bill of Materials (BoM), and producing EDA output files all within one interface. The Canvas also integrates AI‑assisted tools like the Design Assistant to accelerate design entry and iteration.

Inside the Design Canvas

The CELUS Design Canvas is the workspace within the CELUS Design Studio where you can plan, design and execute your electronics projects seamlessly. It provides all the necessary details to expedite the development of a functional electronic product, ranging from high-level block diagrams to interconnecting multiple functional circuits on a simple whiteboard. Additionally, you can create a Bill of Materials (BoM) for your project and generate the Electronic Design Automation (EDA) files required for building your PCBs, all within a single application. Below is a step-by-step guide on how to build a project from scratch.

When you open a project, the CELUS Design Canvas shows its functional blocks and the links between them, with tools around the canvas to assist in structuring your design, as shown in the figure below.

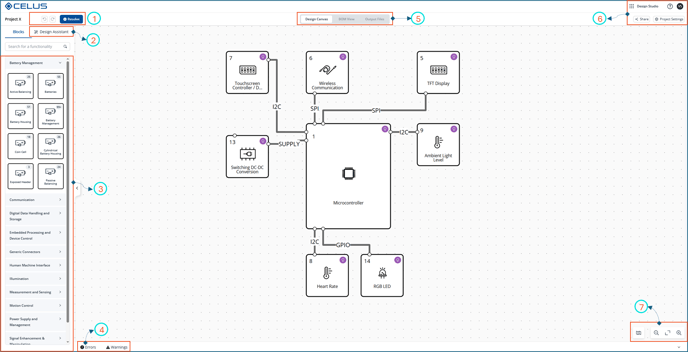

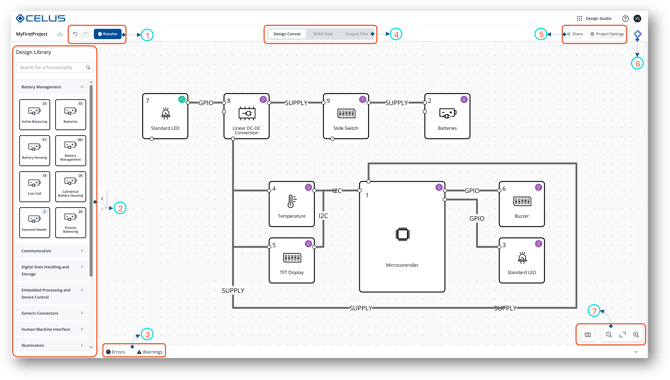

CELUS Design Canvas overview with numbered areas

CELUS Design Canvas: 1) Undo/Redo and Find Solutions button (bottom toolbar) 2) Add Block 3) Errors and Warnings 4) Navigation Tabs 5) Canvas Settings (project menu) 6) Design Assistant 7) View Settings

1) Undo/redo and Find Solutions button

The toolbar at the bottom of the canvas holds Add block, the Find Solutions button and the Undo/Redo buttons. The Undo/Redo buttons help you revert the actions performed in CELUS Design Canvas. Find Solutions resolves the project: it finds matching CUBOs™ for every Functional Block. Once the Find Solutions button is pressed, you cannot undo the action or revert the changes made on CELUS Design Canvas.

2) Add block

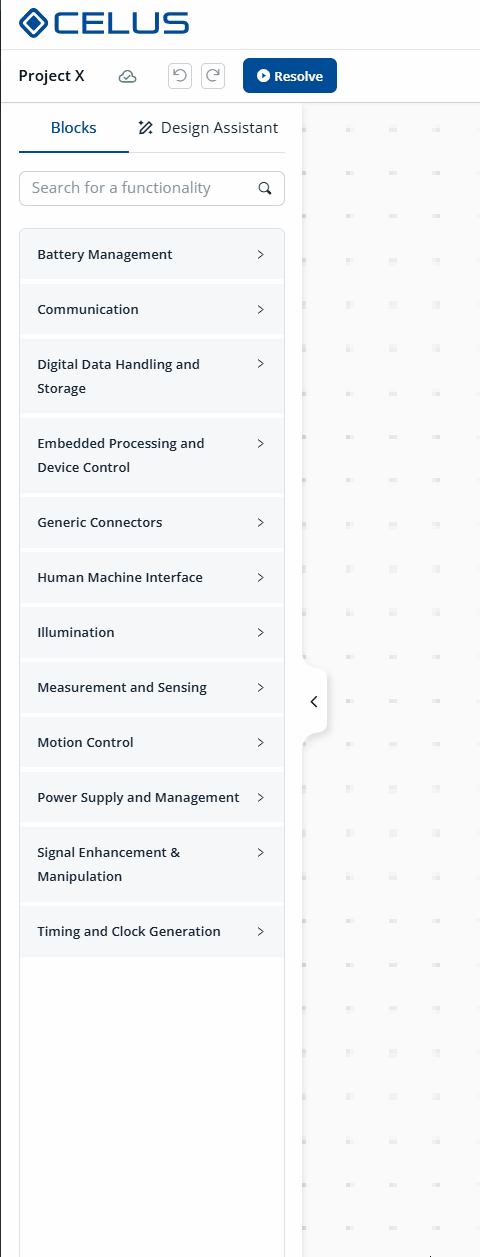

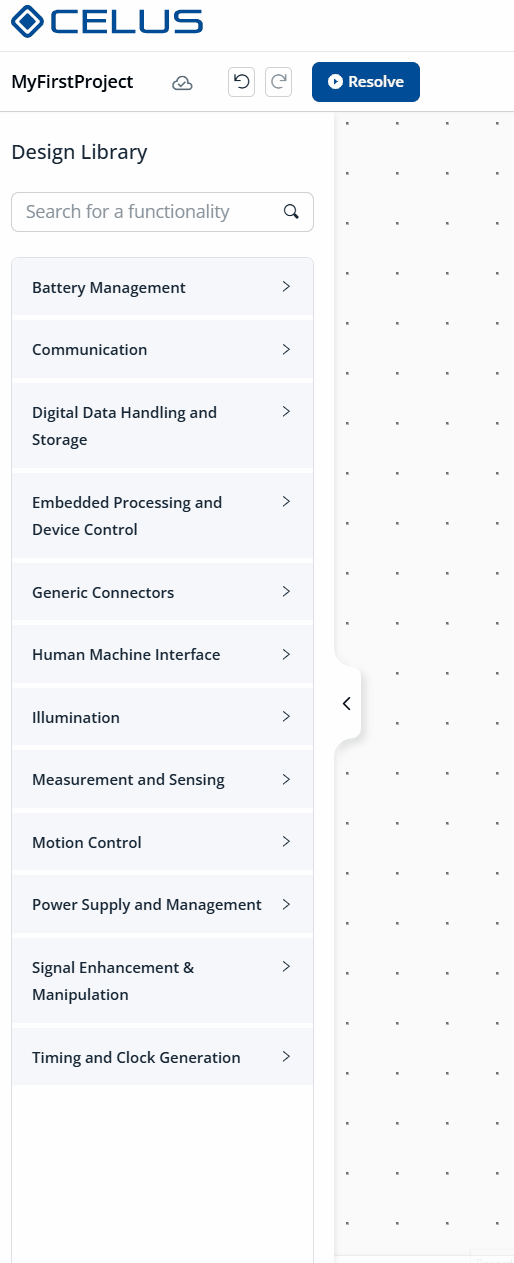

Add block (the plus button in the bottom toolbar) places a new block on the canvas and opens the Functionalities list. Type the name of a functionality in the block, for example LED, to filter the list, then pick one: the block takes that functionality and shows No CUBO selected until you run Find Solutions. See All opens the full list of functionalities. To gain more insight into the concepts of Functional blocks, please visit the page.

Adding a block and picking a functionality

3) Errors and warnings

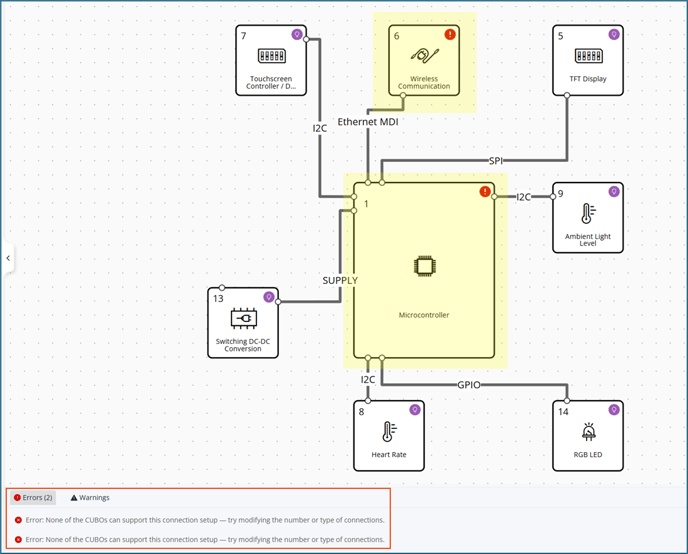

When your design has a problem, CELUS Design Studio shows it on the Design Canvas: a Warnings found (or Errors found) button appears at the bottom right of the canvas.

  • The affected Link or Functional Block is marked with a warning symbol.

  • The button shows the total number of issues, for example Warnings found (1).

  • Clicking the button opens a card with each issue and how to fix it. Use Previous and Next to step through the issues, or Fix for me to let CELUS fix it.

This helps you quickly identify problems and understand how to fix them. The errors and warnings of one block are also listed in its Block details (the i button above a selected block).

The Warnings and Errors cards provide actionable feedback when issues occur in your design.

  • Each entry includes a description of the problem.

  • Clicking on a specific error or warning highlights the related element directly on the Design Canvas.

  • This makes it easier to troubleshoot and continue your design workflow efficiently.

Warnings found button and the warning card

Warnings found: open the card to read the issue, step through the issues or let CELUS fix it

4) Navigation tabs

A project in Design Studio has three tabs: Design Canvas, CELUS CAD and BOM View. You build the project on the Design Canvas; once you run Find Solutions, the CELUS CAD and BOM View tabs are activated for review. CELUS CAD shows the schematic and PCB layout that CELUS generated for the resolved project, block by block, in Schematic, Layout and Side by side views. The generated files are behind the Download button at the top right (it reads Files ready when new files are waiting).

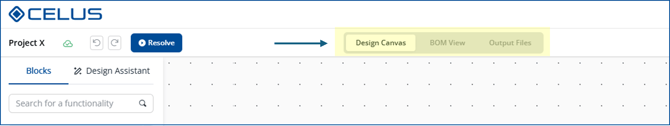

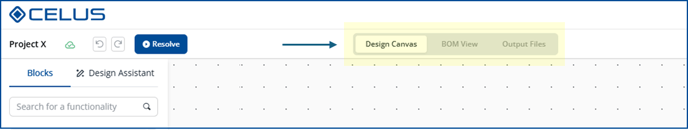

Navigation tabs: Design Canvas, CELUS CAD and BOM View

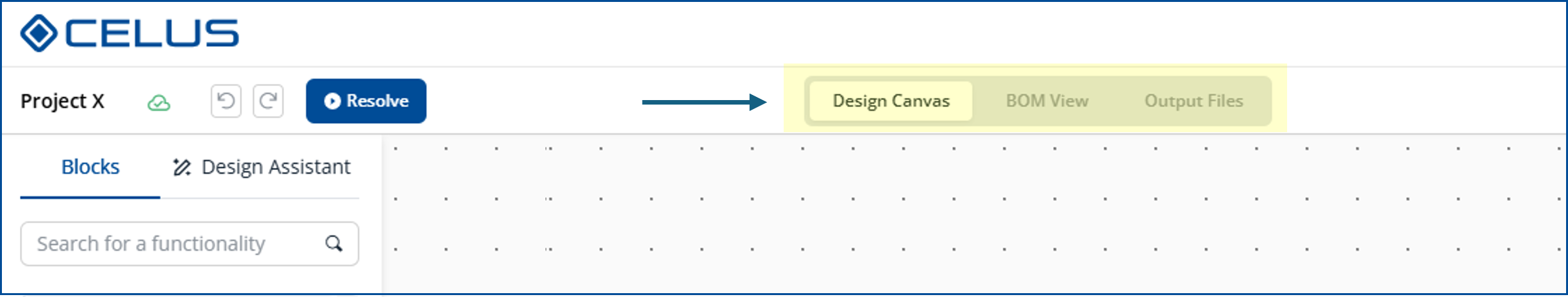

Navigation tabs: Design Canvas, CELUS CAD and BOM View, with Files ready (Download) at the top right

5) Canvas settings

Click the project name at the top left to open the project menu: Rename, Duplicate, Share, Project settings and Delete project.

  • Project Settings: Define your project details, including preferred manufacturers, components, technical constraints, and other requirements.

  • Share Project: Make the project available to others. The first time, Share asks you to accept the License Terms for Community Content; after that you can share the project link with peers or make your project publicly accessible.

Share project dialog with the Terms and Conditions

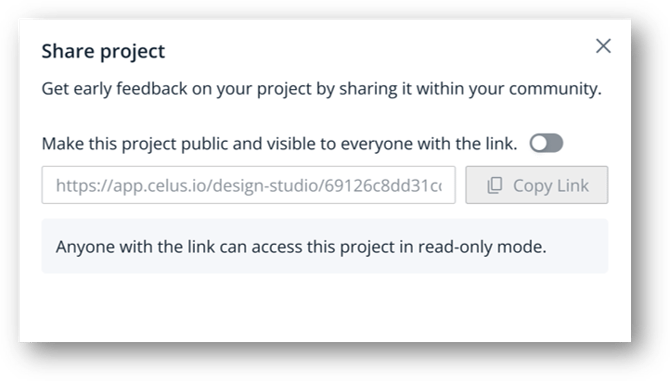

Share project: accept the Terms & Conditions to make a project available to others

6) Design Assistant

AI-Powered Design Commands (Text to Canvas and Image to Canvas) enables users to generate and refine designs using simple text prompts. Users describe what they need, and the AI materializes their intent directly on the canvas. Users can enter natural language commands to interact with the design tool. AI can place and modify design elements based on user instructions. By refining prompts and accepting AI-generated suggestions, users can rapidly iterate and build designs with ease.

By lowering the barrier from concept to prototype, the Design Assistant supports both novice and experienced engineers in streamlining architectural design.

Explore more: Accelerating Electronics Design in Canvas using Design Assistant

7) View settings

The view controls sit at the bottom left of the canvas: Zoom In, Zoom Out and Fit to Screen. To pan, drag an empty part of the canvas; the mouse wheel zooms in and out.

Configure the design

Select the CUBO™

Once your project has been resolved, all Functional Blocks will be populated with at least one matching CUBO™, and each block shows the name of its CUBO™ in its header. Select a block and click Block details (the i button above it) to see its Selected CUBO. By default, the CELUS Design Platform automatically selects a recommended CUBO™, marked with a purple CELUS recommended tag. You can explore additional options by clicking See more CUBO options, which will open the CUBO Results screen. Here, you can review alternative CUBOs, examine their schematics and metadata, and select a preferred implementation. If desired, you can lock a specific CUBO™ directly from the results view. Alternatively, you may proceed with the CELUS-recommended option. When you select a CUBO™, its label changes to Selected by you, indicating that a user-defined selection has been made. Click Lock to lock it; the button then reads Locked. For a detailed walkthrough of the CUBO™ Results interface and further selection mechanisms, refer to the chapter titled Select CUBO™.

CUBO recommended by CELUS and CUBO selected by you

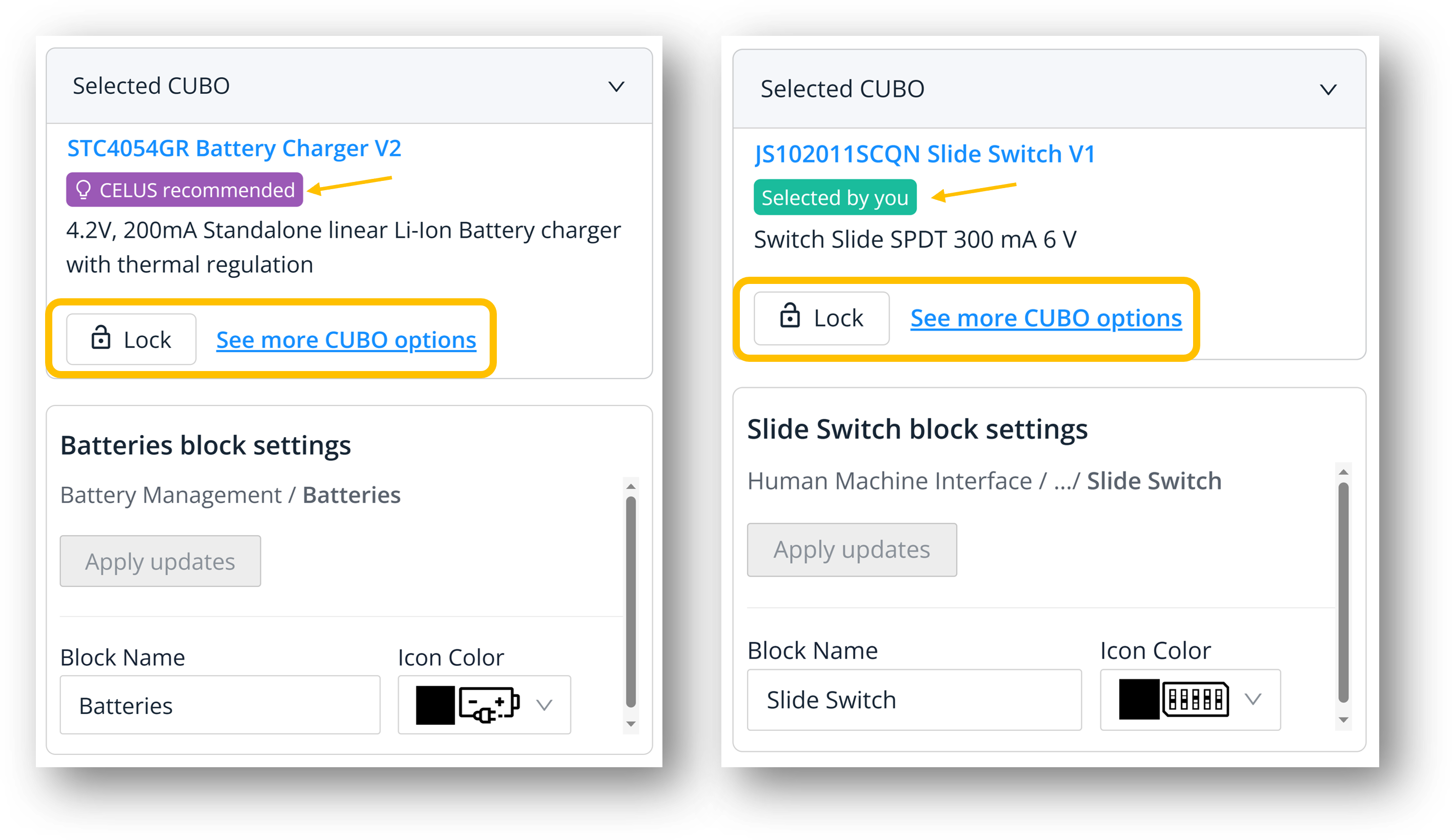

1) CUBO™ recommended by CELUS 2) CUBO™ selected by you

Delete / duplicate a functional block

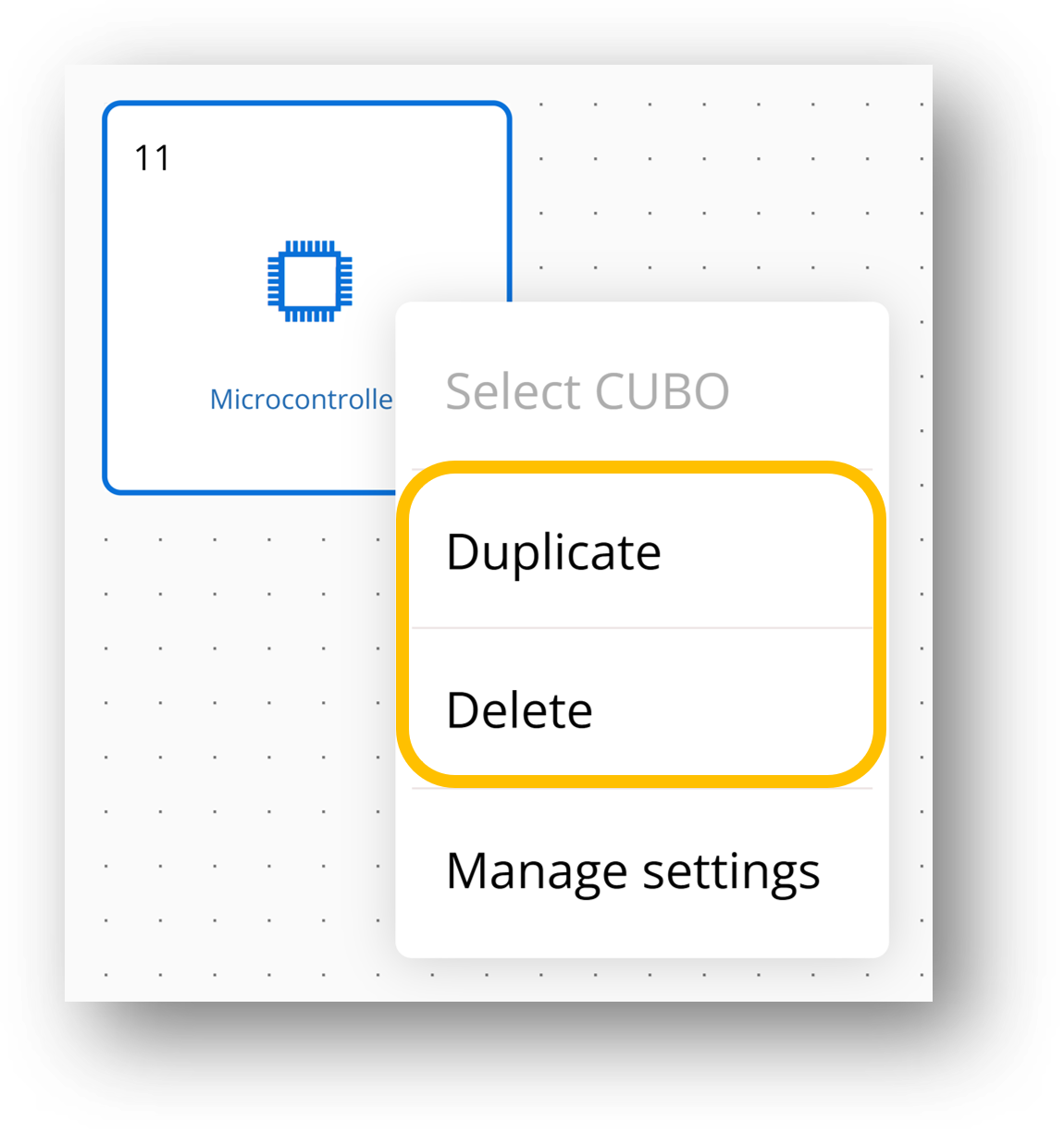

To Delete or Duplicate a Functional block, first, select the Functional block with a left-click. A toolbar appears above it: select Delete (bin icon) to remove the Functional Block or select Duplicate to create another copy of the Functional Block.

Block toolbar above a selected block

Block toolbar: See solutions, Block details, Open in CELUS CAD, Duplicate and Delete

Move or resize functional block

To move a block in Canvas, first, select the block by left-clicking with the mouse. Once the block is selected, drag it to the desired position.

You can resize the block by dragging one of the square handles at the corners of the selected block across the grid.

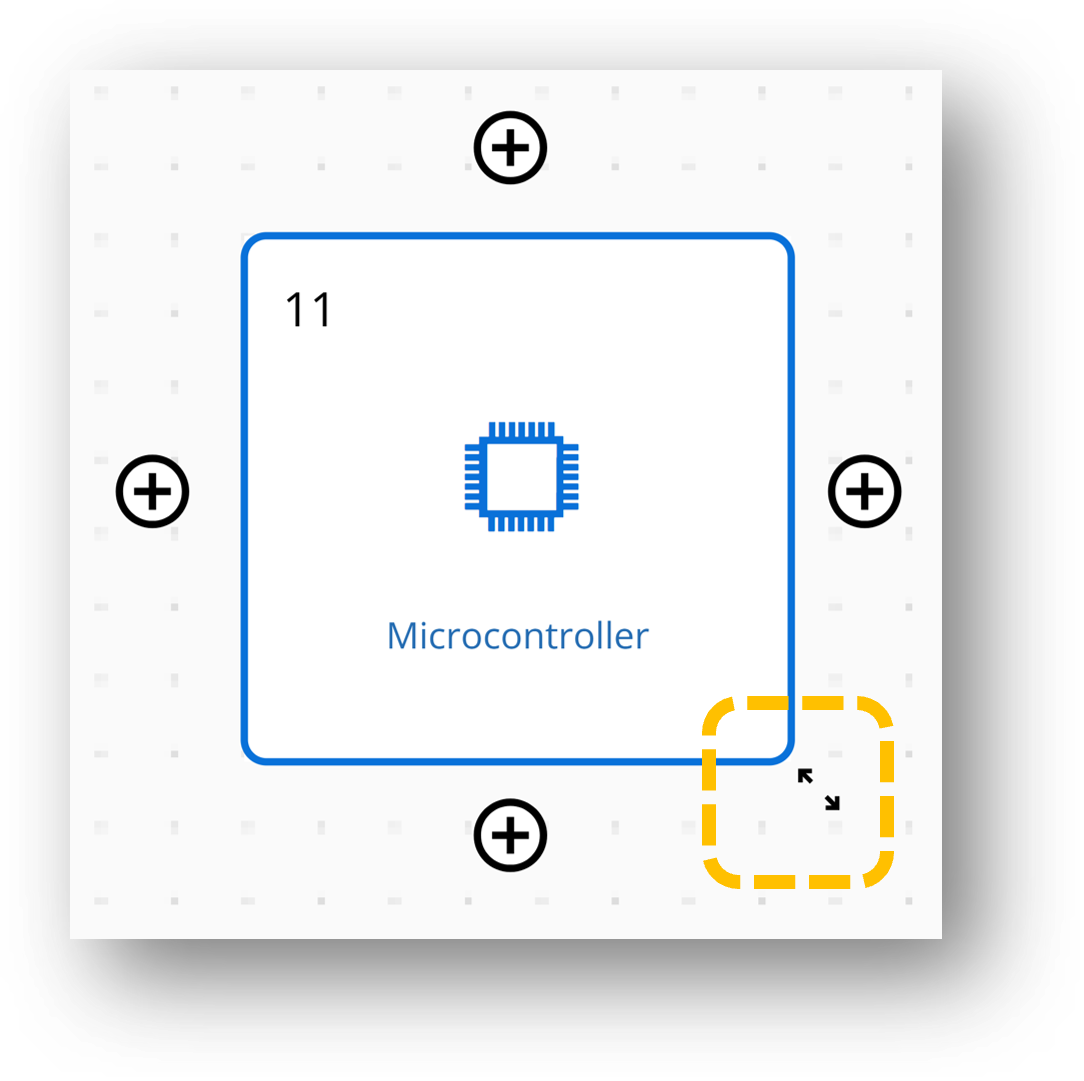

Corner handles of the selected block for resizing

Resize the Block: corner handles of the selected block

Adding ports to functional block

Establishing connections on CELUS Design Canvas between Functional Blocks is facilitated by Ports and Links. To start, select a Functional Block by clicking on it. A dot appears on each of its four sides. Hover over the dot on the side where you want the connection: it offers an arrow, which adds a Port on that side and starts a new Link from it, and a plus button, which previews a new block connected on that side.

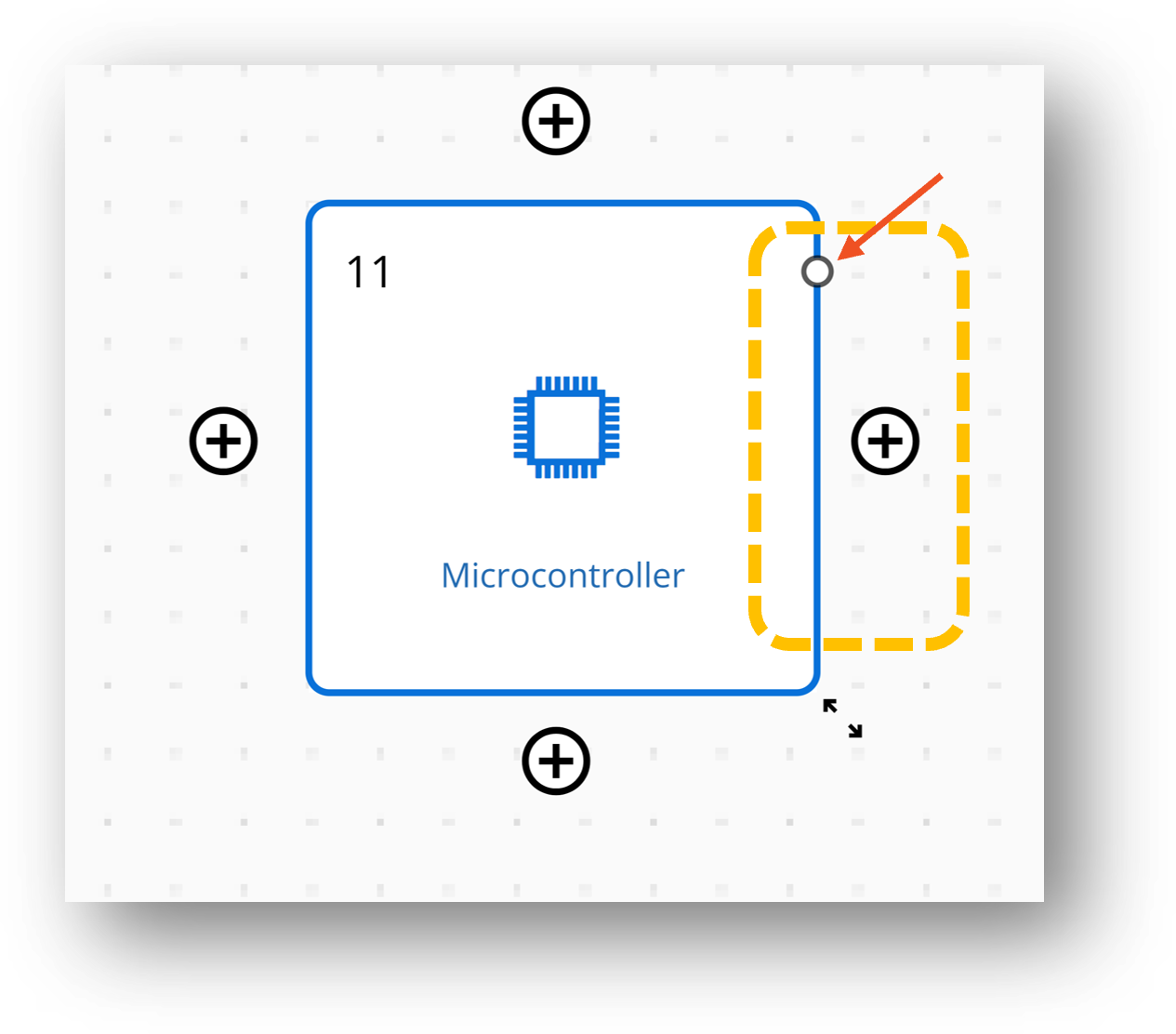

Adding a Port with the arrow on a side of the selected block

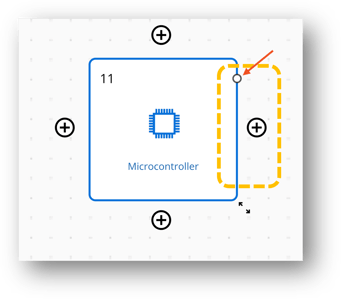

Adding a Port: hover a side of the selected block and click the arrow

Connect functional blocks via links

To connect two Functional Blocks in the CELUS Design Canvas, use Links which act as virtual wires between CUBOs. Select the first block and click the arrow on one of its sides: a Port and a new Link appear, and the Link settings open next to it.

Then click the block you want to connect. For a supply Link, Symbol is on by default, so both blocks show a supply symbol with the same name (for example SUPPLY-4). Turn Symbol off to draw the Link as a wire between the two Ports.

Connecting two Functional Blocks with a Link

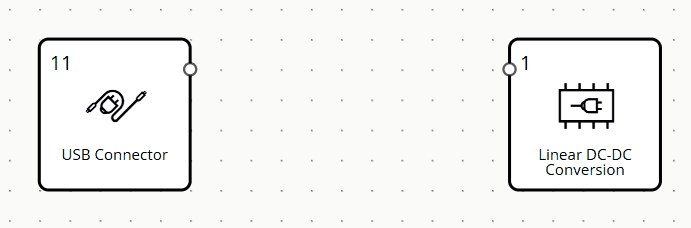

Connecting Functional Blocks using links

Branch and move links

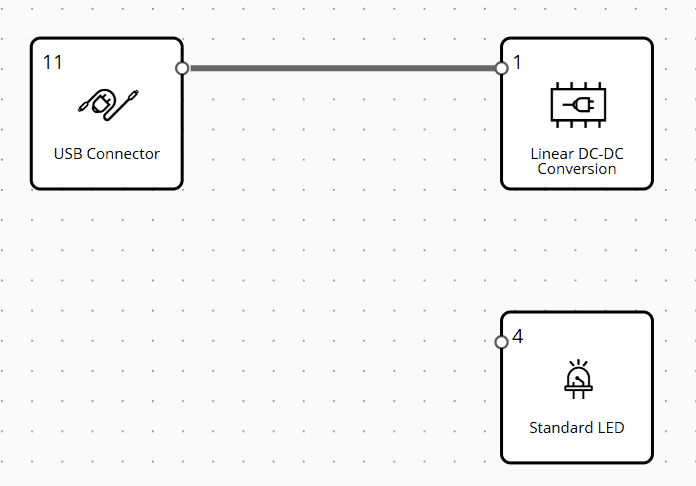

To establish a T-connection or a Star Connection, connect another block to an existing net: start a new Link from that block (the arrow on its side) and pick the name of the existing net, for example SUPPLY-4, in the Name list of the Link settings. The block joins the net, and a junction dot marks the T-connection.

T-connection: joining a block to an existing net

Establishing T-Connection among Functional Blocks

To refine your project design, you can easily rearrange links after establishing connections. First, left-click on the Link you want to move: it is highlighted in blue and each segment shows a handle. Then drag the handle of a segment in the desired direction.

Moving a Link segment by its handle

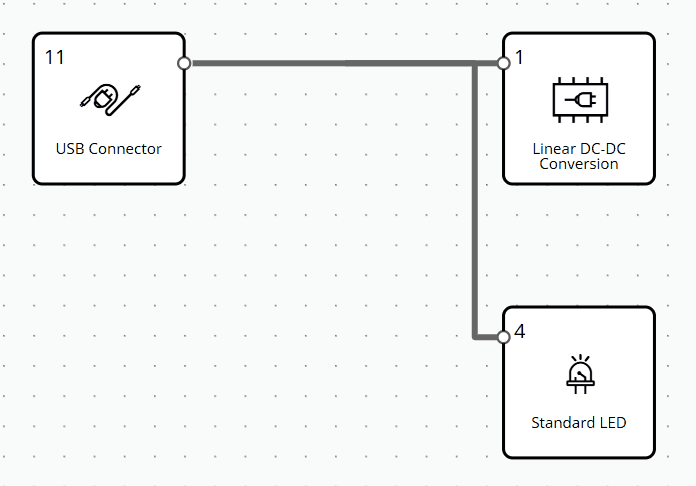

Moving Links in Design Canvas

Link settings and assigning ports to links

In the CELUS Design Studio, interface assignment between Functional Blocks is typically handled automatically. Once you resolve a project, the platform’s AI engine intelligently maps compatible interfaces to Links, virtual wire connections between blocks.

However, if you need to explicitly define port-to-port connections between blocks:

  • Left-click on a Link in the canvas.

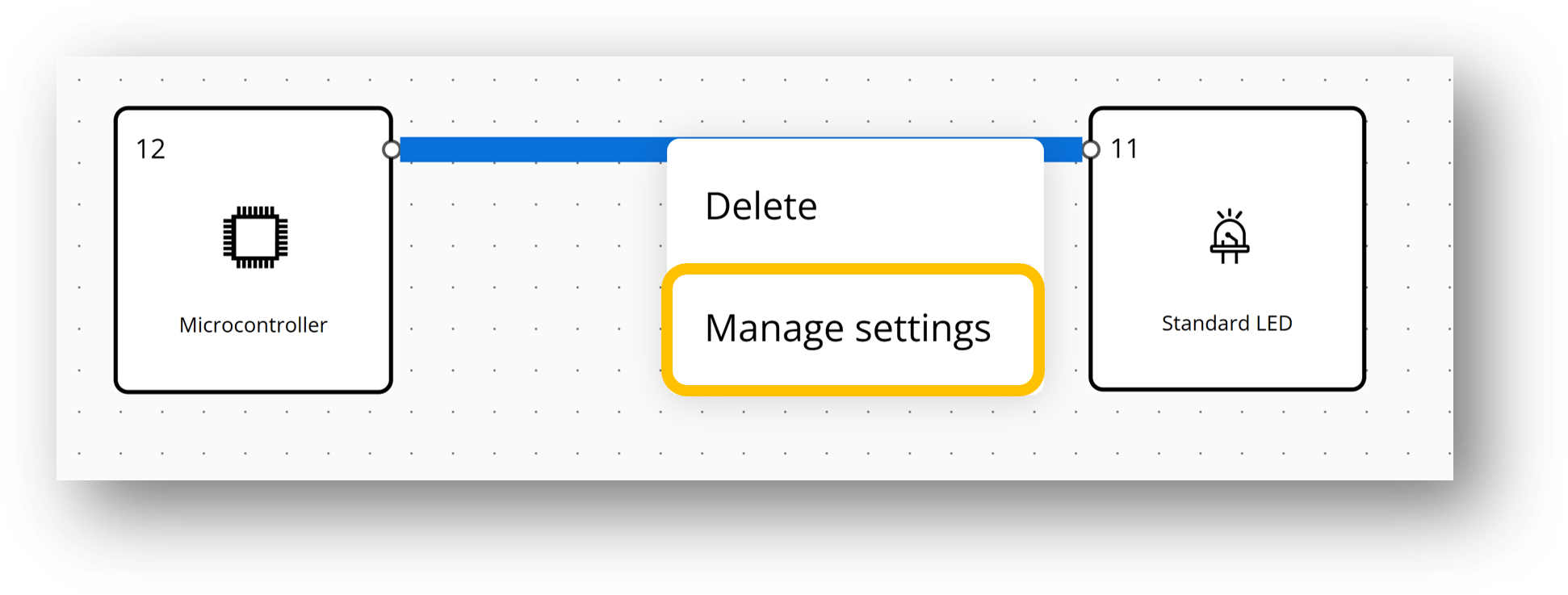

  • This opens the Link settings next to the Link: Interface, Name, Symbol and Net voltage for a supply Link, or the interface (for example GPIO) for a signal Link.

  • Use the Interface list to choose a shared interface supported by both connected functionalities.

  • Under CUBO, choose the desired Port of each connected block from its Port list.

  • Run Find Solutions to check the changes.

Link settings: Interface, Name, Symbol, Net voltage and Ports

Link settings: Interface, Name, Symbol, Net voltage and the Port of each connected block

Note: If the interface connects to multiple blocks, the related ports will not yet appear under Available Ports. This capability is planned for a future release.

Place port labels

Each Link shows its label directly on the canvas: the net name and voltage of a supply Link (for example 3.298 V SUPPLY-3) or the interface of a signal Link (for example I2C or GPIO).

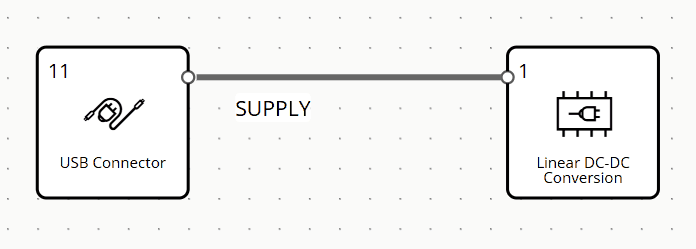

To reposition the label:

  • Left-click on the label until the drag icon appears.

  • Drag the label to your desired position.

Note: Port label movement is constrained by the orientation of the Link segment:

  • If the segment is vertical, the label moves vertically.

  • If the segment is horizontal, the label moves horizontally.

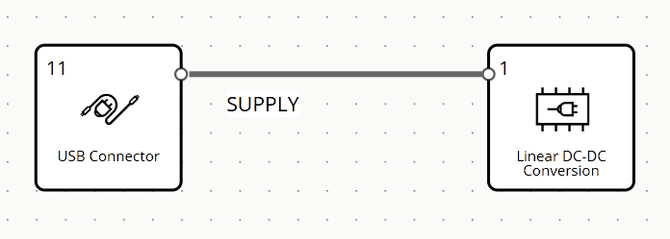

Link labels on the canvas: net name and voltage, or the interface

Link labels: net name and voltage, or the interface

Resolve project

Projects you create with Design Assistant, along with any changes you make (such as connecting functional blocks, assigning ports, and adding labels), are automatically saved by the CELUS Design Studio.

To complete your project resolution:

  • Click Find Solutions in the toolbar at the bottom of the canvas.

  • Wait a few seconds while the system processes your design.

  • Each Functional Block then shows the name of its CUBO™ in its header instead of No CUBO selected. A purple icon in the header marks a block whose solution changed in the last resolve.

  • Once resolved, the CUBO Results page on the Design Canvas will display the generated CUBO™ solutions for each block.

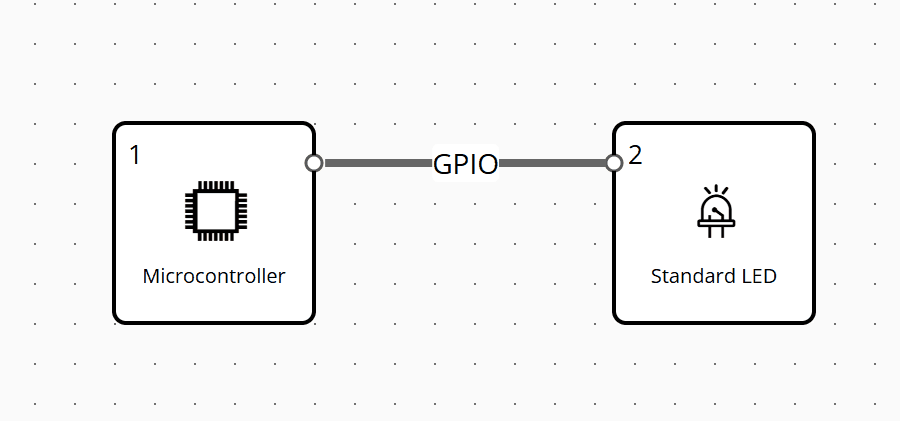

Find Solutions resolving the project

Successful resolution of Project

Block status before and after Find Solutions

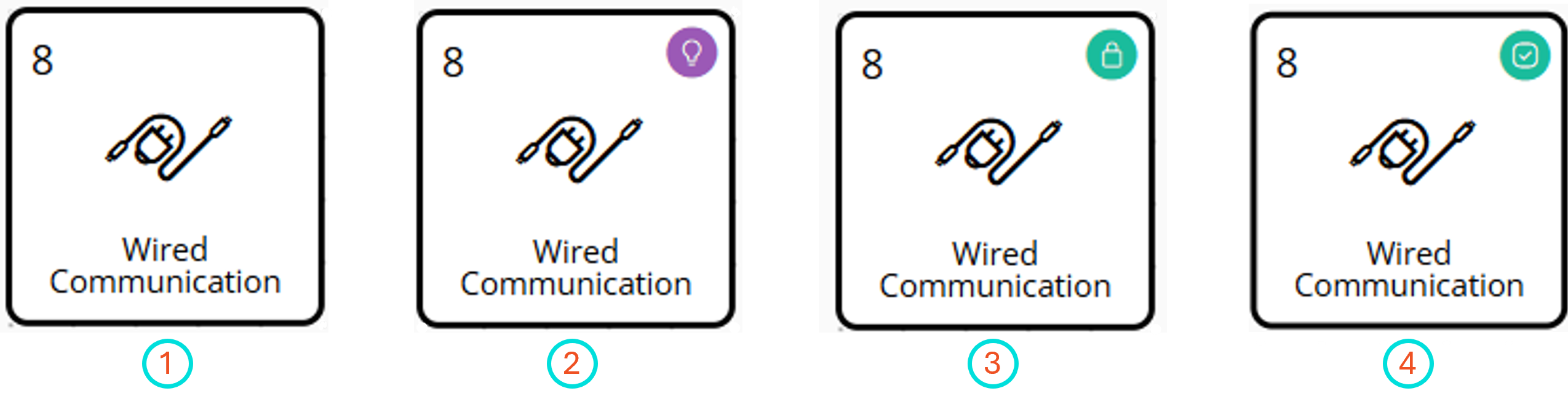

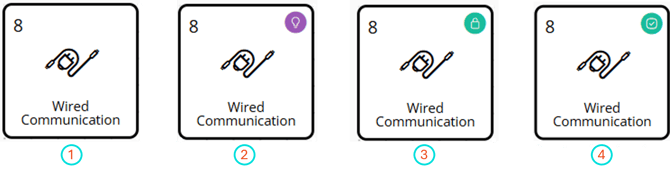

Block status: 1) Before Find Solutions: No CUBO selected 2) CUBO found by Find Solutions 3) CUBO selected and locked 4) CUBO selected by you, unlocked
