Every engineer knows the struggle: hours lost scrolling through distributor catalogs, comparing datasheets, and tweaking filters that never quite capture what the design actually needs. Finding the right-fit component isn’t just tedious - it’s a creative bottleneck. With Filters for CUBOs, the CELUS Design Platform transforms that process from a search problem into a design decision. By surfacing components within reusable, functionally validated modules, CELUS helps engineers stay focused on what truly matters: building solutions.
But among all the available filters, which ones shape better engineering outcomes but are often forgotten? This blog article helps you understand how to make those filters work for you, so every search leads to smarter, faster design choices!

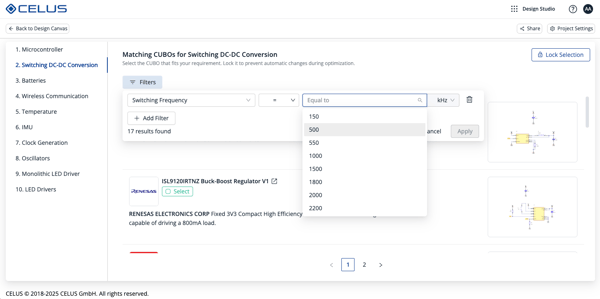

1) Switching Frequency on DC/DC Converters
Switching frequency on DC/DC converters is one of those parameters that quietly wields enormous influence. It directly affects EMI filtering and regulatory compliance, yet it’s often overlooked until testing or certification stages. By then, even small frequency choices can lead to major redesigns or layout compromises.
Getting it right early isn’t just about efficiency, it’s about predictability and stability. The right frequency choice can simplify filtering, reduce noise, and prevent headaches down the line. Sometimes, the quietest parameters make the loudest difference.
2) Wi-Fi Frequency
The choice between 2.4 GHz and 5 GHz may seem straightforward, but it can dramatically affect signal quality and range. While 5 GHz offers higher speeds, it’s more sensitive to obstacles and interference, which can limit coverage in real-world environments.
Making the right band choice early can mean the difference between a device that keeps users connected and one that leaves them frustrated. Understanding this trade-off before production ensures your design works as expected outside the lab, not just on the bench.
3) Core Architecture on Microcontrollers
Picking a microcontroller isn’t just about performance or cost. The core architecture, whether ARM Cortex-M, RISC-V, or another option, affects software compatibility, toolchain support, and debugging ease. It can also determine how easily firmware can be ported across different platforms.
Choosing the right architecture from the start can save weeks of integration headaches and ensures your software stack scales smoothly as your hardware evolves. It’s a decision that ripples far beyond raw processing power.
4) Why Drop-Out Voltage Matters
Drop-out voltage often gets overlooked, but it’s far more than a datasheet number. It defines the minimum difference between a linear regulator’s input and output voltage needed for proper operation.
Why does this matter? Because that voltage difference, multiplied by the current, turns into heat. A higher drop-out voltage means more power is wasted as heat, which can require a heatsink and influence your design’s size, cost, and reliability.
In short: drop-out voltage indirectly tells you how hot your regulator will get and whether additional cooling is needed. Ignoring it early can lead to surprises during prototyping - or worse, in production.
As you see, Filters for CUBOs helps engineers by turning vague requirements into precise, functional criteria. It also helps to identify which other aspects of a function are important and accelerates the path from idea to validated design. What once required hours of manual comparison now happens in seconds, guided by context, not guesswork.
This is what real design confidence looks like: knowing that every choice explicitly aligns with your technical goals before the first schematic is even drawn. It’s not just about finding parts faster; it’s about building smarter from the very beginning.
👉 Try Filters for CUBOs in the CELUS Design Studio and experience how structured selection transforms into design momentum. See how clarity at the point of choice leads to cleaner architectures, faster iterations, and a smoother path from concept to creation.
