What is a CUBO™?

A CUBO™ is an all-inclusive digital datasheet that revolutionizes the way electronics is developed. Bursting with essential information like a well defined application ready to use by any EDA, a bill of materials (BOM), specifications, netlist and interfaces.

The CUBO™ goes above and beyond by providing enriched information on component placement, pricing, availability, and comprehensive documentation. CUBOs empower engineers to bring their ideas to life without the hassle of extensive research.

Specifications

It has all the specs associated to its components, just like a datasheet.

Application

Each CUBO™ represents a well-defined application of an electronic component, e.g. an I2C environmental sensor that works at 3.3V.

CAD Files

CUBOs contain schematic, netlist, layout, and bill of materials (BOM) of the associated application.

Interfaces

How does the CUBO™ connect with other CUBOs?

Supply Chain Information

Updated lifecycle information for every component of the CUBO™.

Optimization Factors

Price, size, efficiency...

Get Started

deep dive

CUBO™ in Projects

CUBOs harness the incredible capabilities of the CELUS Design Platform, revolutionizing the way components are discovered and utilized. Take organization and efficiency to a whole new level. Say goodbye to countless hours of digging through scattered resources and dedicate more time to focus on what really matters — innovation and creativity.

Our platform automatically transforms hardware architectures into EDA projects in seconds, enabling designers to access and leverage components and their applications efficiently.

Weather Station

This minimal design is intended to demonstrate how you can get started with your own ARM-based PCB designs.

Powered by Renesas' RA4M1 MCU, it consists of nearly the minimum amount of circuitry required to make a functional design that can read information from 3 Würth sensors (temperature, absolute pressure and humidity) via I²C bus.

Download PDF Weather Station

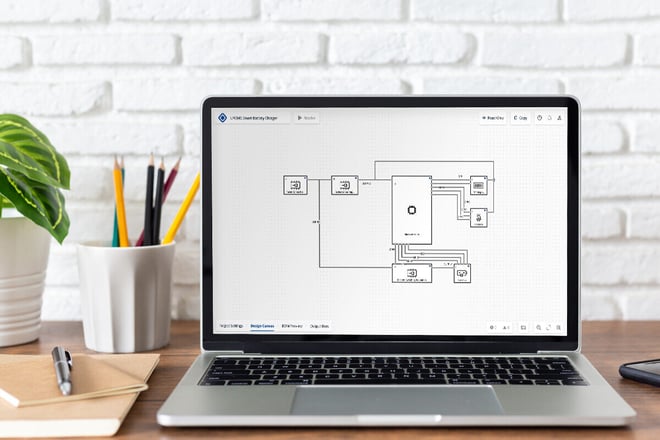

Robotic Arm Controller

Explore the capacity of Raspberry Pi's first MCU, the RP2040 in combination with 3 dual half bridge motor drivers from STMicroelectronics and control 3 DC motors powered with 12V thanks to RECOM’s power solutions.

Download PDF Robotic Arm

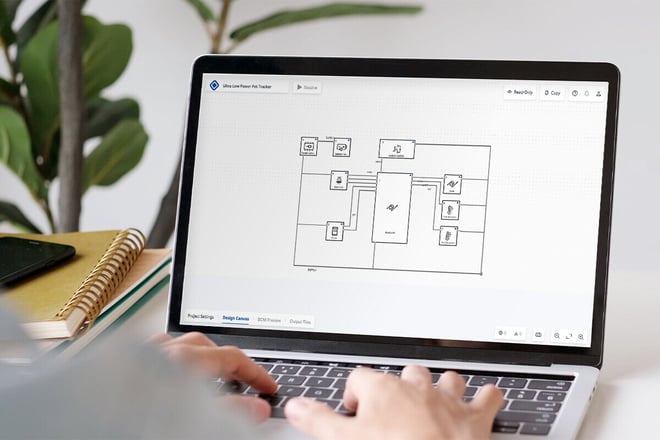

WiFi and Bluetooth GPS Position Tracker

Little board with a GPS receiver. Thanks to the ESP32-S3 Wi-Fi and Bluetooth®, the information about the position can be sent via Bluetooth or Wi-Fi to another location.

Download PDF GPS Tracker
