Overview

In the CELUS Design Platform, every CUBO™ is defined by its functionality, what the circuit does and, functionality specifications, how it performs that task. These specifications include electrical parameters, interfaces, and operating conditions.

To organize the wide range of possible circuit functions, CELUS uses a four-level hierarchy:

Level 1: Parent Functionality
Broad categories (e.g., "Power Supply") that group related functions.
Levels 2–4: Child Functionalities
More specific functions (e.g., "Step-Down Converter").

Each level adds more detail. Child functionalities inherit traits from their parents and may define their own specifications.

A Functional Block appears on the Design Canvas only if a matching CUBO™ exists. It represents a functional need in the project and links directly to ready-to-use solutions.

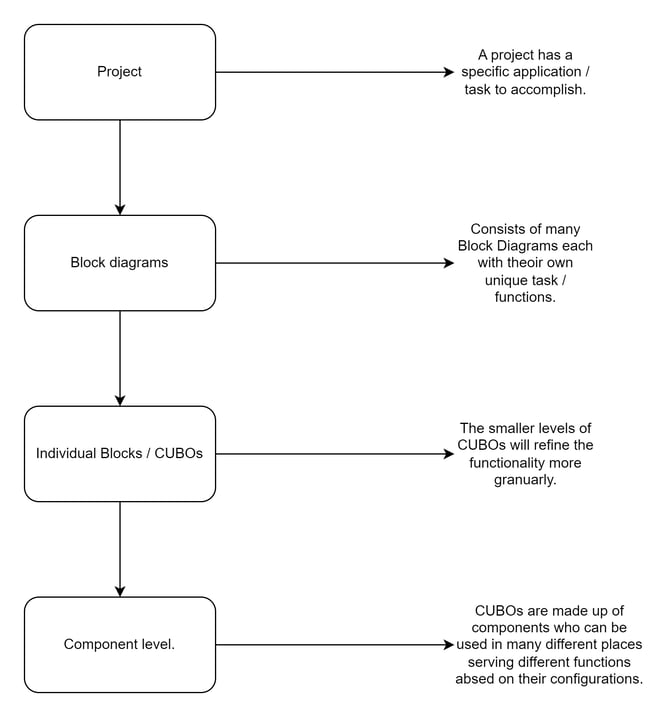

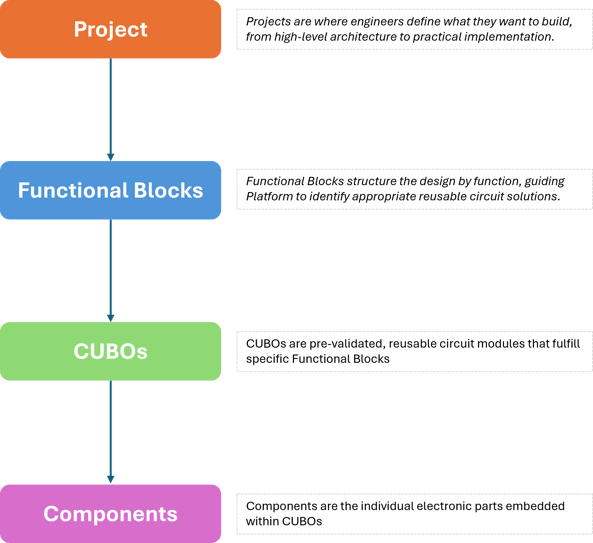

Hierarchy: Project level to Component level

Functionalities in CELUS Design Platform

Functionalities populated with CUBOs appear in bold text below.

Functionalities without CUBOs appear in regular text below.

Battery Management

Battery Management	Active Balancing
	Batteries	Battery Housing	Coin Cell
			Cylindrical Battery Housing
			Exposed Header
		Solderable Batteries	Cylindrical Solderable Batteries
	Battery Monitor
	Passive Balancing

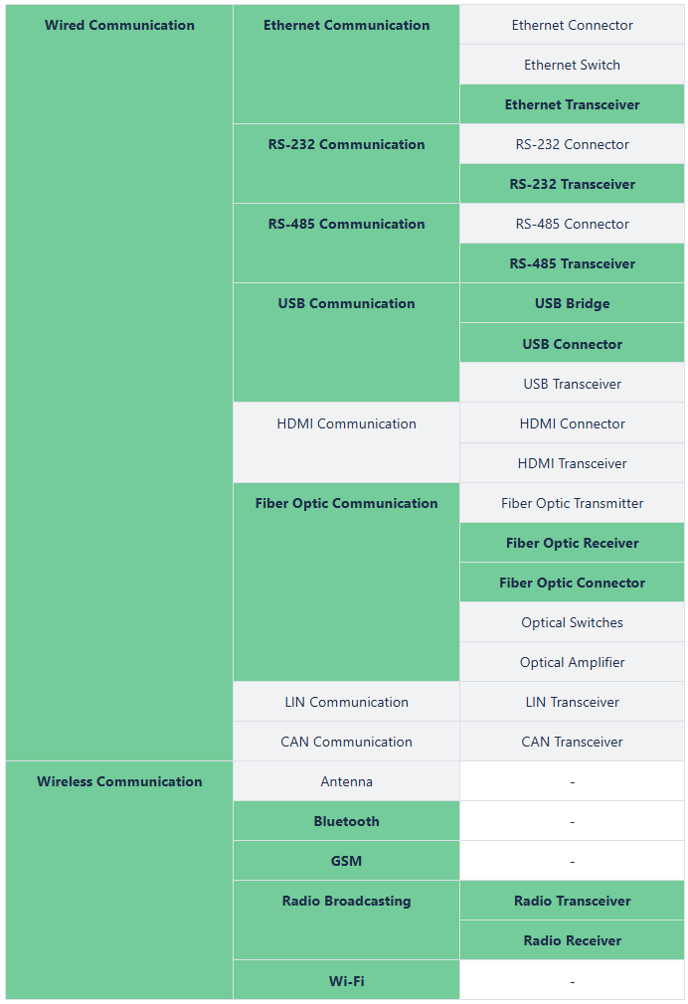

Communication

Communication	Wired Communication	CAN Communication	CAN Transceiver
		Communication Bridges
		Ethernet Communication	Ethernet Connector
			Ethernet Switch
			Ethernet Transceiver
		Fiber Optic Communication	Fiber Optic Connector
			Fiber Optic Receiver
			Fiber Optic Transmitter
			Optical Amplifier
			Optical Switches
		FlexRay Communication	FlexRay Transceiver
		HDMI Communication	HDMI Connector
		HDMI Communication	HDMI Transceiver
		LIN Communication	LIN Transceiver
		RS-232 Communication	RS-232 Connector
		RS-232 Communication	RS-232 Transceiver
		RS-485 Communication	RS-485 Connector
		RS-485 Communication	RS-485 Transceiver
		USB Communication	USB Bridge
			USB Connector
			USB Transceiver
	Wireless Communication	Antenna	Antenna Connector
		Bluetooth
		GSM
		Radio Broadcasting	Radio Receiver
		Radio Broadcasting	Radio Transceiver
		SIM Interface
		Wi-Fi

Digital Data Handling and Storage

Digital Data Handling and Storage	Data Conversion	Analog to Digital Converter (ADC)
		Coder - Decoder
		Digital to Analog Converter (DAC)
	Memory and Storage	EEPROM
		EPROM
		External Storage Connectors	Micro SD / TF Card
			MMC
			RAM Slot
			SD Slot
		FIFO Buffers	Non-Volatile FIFO Buffers
		FIFO Buffers	Volatile FIFO Buffers
		Flash
		PROM
		RAM	Non-Volatile RAM
		RAM	Volatile RAM

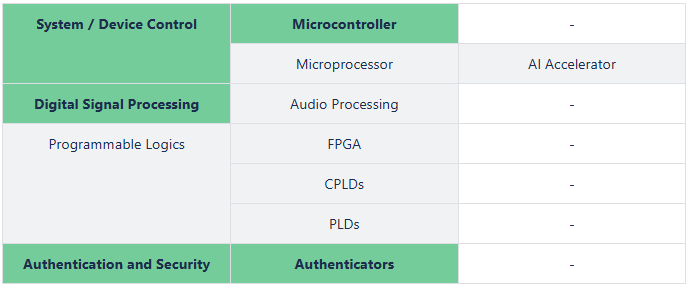

Embedded Processing and Device Control:

Embedded Processing and Device Control	Authentication and Security	Authenticators
	Digital Signal Processing	Audio Processing
	Programmable Logics	CPLDs
		FPGA
		PLDs
	System / Device Control	Microcontroller
		Microprocessor	AI Accelerator

Generic Connectors

Generic Connectors	Anderson Connector
	DIN Connector
	DT Connector
	Headers (Berg Strips)
	Mezzanine
	Peripheral Expansion Connector

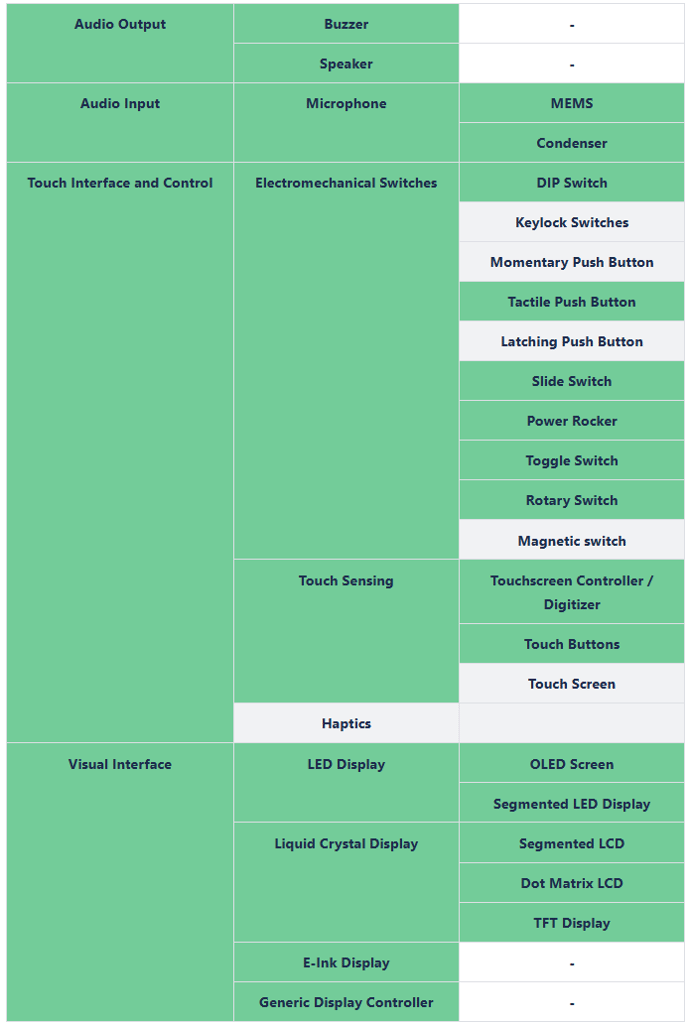

Human Machine Interface

Human Machine Interface	Audio Input	Microphone	Condenser
	Audio Input	Microphone	MEMS
	Audio Output	Buzzer
	Audio Output	Speaker
	Touch Interface and Control	Electromechanical Switches	DIP Switch
			Keylock Switches
			Latching Push Button
			Magnetic Switches
			Momentary Push Button
			Power Rocker
			Rotary Switch
			Slide Switch
			Tactile Push Button
			Toggle Switch
		Haptics
		Touch Sensing	Touch Buttons
			Touch Screen
			Touchscreen Controller / Digitizer
	Visual Interface	E-Ink Display
		Generic Display Controller
		LED Display	OLED Screen
		LED Display	Segmented LED Display
		Liquid Crystal Display	Dot Matrix LCD
			Segmented LCD
			TFT Display

Illumination

Illumination	LED Drivers	Discrete LED Driver
	LED Drivers	Monolithic LED Driver
	Lighting Devices	Infrared LED
		Laser Diode
		Multicolor LED
		Power LED
		RGB LED
		Standard LED

Measurement and Sensing

Measurement and Sensing	Biomedical Measurement	Blood Pressure
		Body Temperature
		Electrocardiogram (ECG)
		Electroencephalogram (EEG)
		Electromyogram (EMG)
		Glucose Concentration
		Heart Rate
	Chemical Sensing and Measurement	Concentration of Gases or Liquids
		Concentration of Ions
		Dissolved Oxygen
		Electrical Conductivity
		pH Level
		Redox Potential
	Electrical Measurement	Capacitance	De Sauty Bridge
			Maxwell-Wein Bridge
			Owen Bridge
			Resonance Circuit for Capacitance
			Schering Bridge
		Current	AC Current Meter
			Hall Effect Current Sensor
			Isolated Hall Effect Current Sensor
			Linear Current Sensor
			Magnetic Current Sensor
			Pulse Current Transformer
			Split Core Current Sensor
			Wireless AC Current Sensor
		Frequency Counter	Direct Counting Frequency Counter
		Frequency Counter	Reciprocal Frequency Counter
		Impedance
		Inductance	Anderson Bridge
			Hay's Bridge
			Maxwell's Bridge
			Resonance Circuit for Inductance
		Power	Energy Meter
		Power Factor
		Resistance	Instrumentation Amplifier (INA)
			Programmable Gain Amplifier
			Wheatstone's Bridge
		Voltage

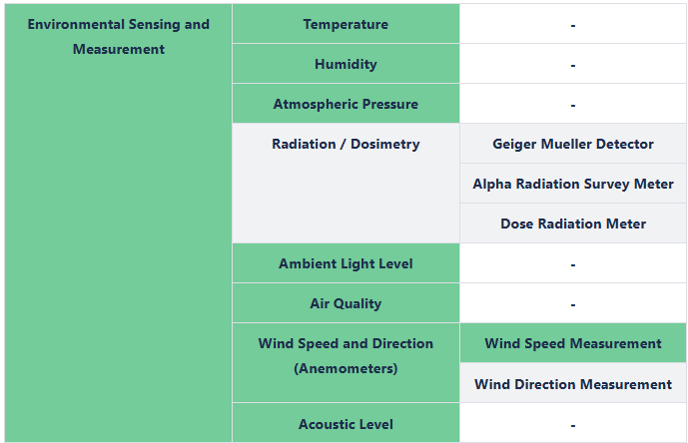

	Environmental Sensing and Measurement	Acoustic Level
		Air Quality
		Ambient Light Level
		Atmospheric Pressure
		Humidity
		Radiation / Dosimetry	Alpha Radiation Survey Meter
			Dose Radiation Meter
			Geiger Mueller Detector
		Temperature
		Wind Speed and Direction (Anemometers)	Wind Direction Measurement
		Wind Speed and Direction (Anemometers)	Wind Speed Measurement

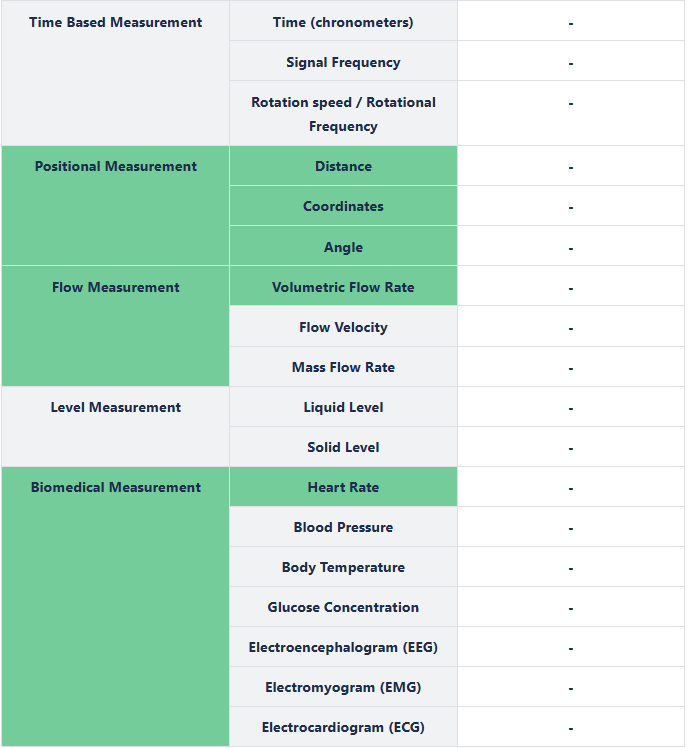

	Flow Measurement	Flow Velocity
		Fluid Pressure
		Mass Flow Rate
		Volumetric Flow Rate
	Level Measurement	Liquid Level
	Level Measurement	Solid Level
	Mechanical Sensing and Measurement	Acceleration
		Angular Velocity
		Force
		IMU
		Linear Displacement
		Magnetometer
		Strain or Stress
		Torque
Velocity
Vibration
Weight or Mass
Optical Sensing and Measurement	Camera
	Electromagnetic Spectrum Analyzer
	Light Detection
	Light Intensity Measurement
	Polarization
	Reflectance
	Transmittance
Positional Measurement	Angle
	Coordinates
	Distance
Time Based Measurement	Rotation speed / Rotational Frequency
	Signal Frequency
	Time (chronometers)

Motion Control

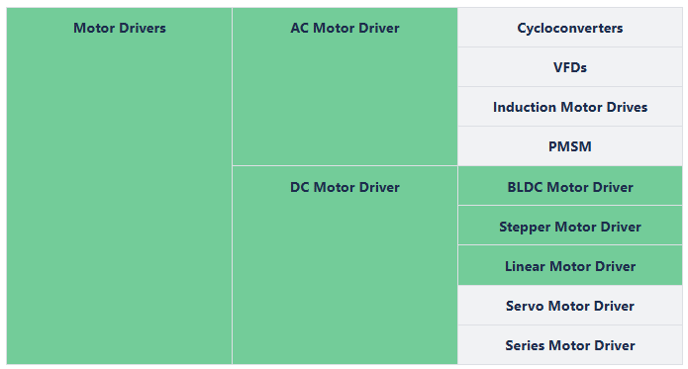

Motion Control	Motor Drivers	AC Motor Driver	Cycloconverters
			Induction Motor Drives
			PMSM
			VFDs
		DC Motor Driver	BLDC Motor Driver
			Linear Motor Driver
			Series Motor Driver
			Servo Motor Driver
			Stepper Motor Driver

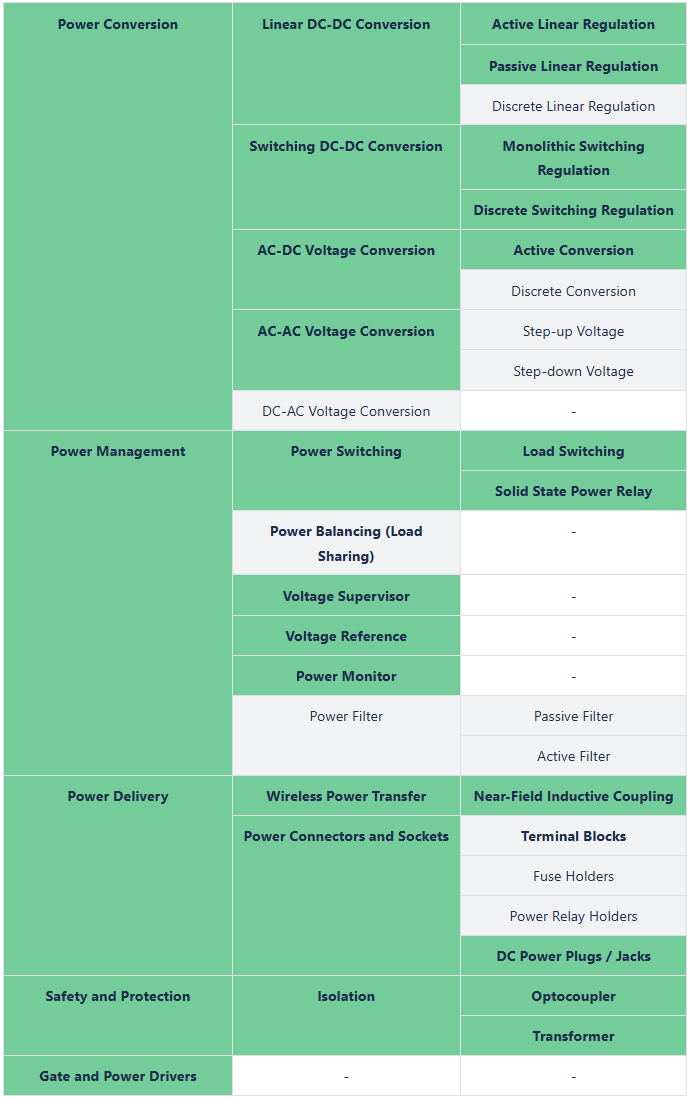

Power Supply and Management

Power Supply and Management	Gate and Power Drivers
	Power Conversion	AC-AC Voltage Conversion (Cycloconverters)	Step-down Voltage
		AC-AC Voltage Conversion (Cycloconverters)	Step-up Voltage
		AC-DC Voltage Conversion	Active Conversion
		AC-DC Voltage Conversion	Discrete Conversion
		DC-AC Voltage Conversion
		Linear DC-DC Conversion	Active Linear Regulation
			Discrete Linear Regulation
			Passive Linear Regulation
		Switching DC-DC Conversion	Discrete Switching Regulation
		Switching DC-DC Conversion	Monolithic Switching Regulation
	Power Delivery	Power Connectors and Sockets	DC Power Plugs / Jacks
			Fuse Holders
			Power Relay Holders
			Terminal Blocks
		Wireless Power Transfer	Near-Field Inductive Coupling
	Power Management	Power Balancing (Load Sharing)
		Power Filter	Active Filter
		Power Filter	Passive Filter
		Power Monitor
		Power Switching	Load Switching
		Power Switching	Solid State Power Relay
		Voltage Reference
		Voltage Supervisor
	Safety and Protection	Isolation	Optocoupler
		Isolation	Transformer
		USB Power Safety and Protection

Signal Enhancement & Manipulation

Signal Enhancement & Manipulation	Signal Amplification	Audio Amplification
	Signal Amplification	RF Amplification
	Signal Conditioning	Current Sense Amplifier
		Differential Amplifier
		Dynamic Resistance Control	Digital Potentiometer
		Instrumentation Amplifier	Thermocouple Amplifier
		Operational Amplifier
		Signal Comparison
		Signal Isolation and Noise Reduction
	Signal Filtering & Wave shaping	All Pass Filter
		Band Pass Filter
		Band Stop Filter
		High Pass Filter
		Low Pass Filter
	Signal Level Shifting
	Signal Multiplexing / Demultiplexing
	Signal Switching

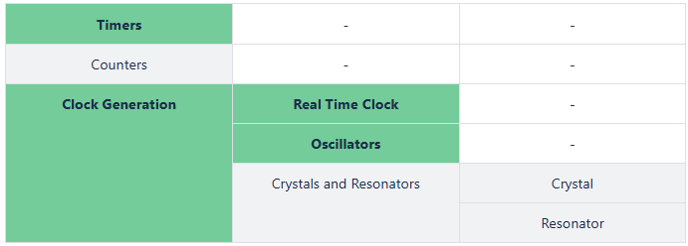

Timing and Clock Generation

Timing and Clock Generation	Clock Generation	Crystals and Resonators	Crystal
		Crystals and Resonators	Resonator
		Oscillators
		Real Time Clock
	Counters
	Timers
