What is the Design Assistant?

The CELUS Design Assistant is an AI-powered tool embedded directly within the CELUS Design Platform, designed to accelerate electronics development by interpreting natural language prompts. It allows engineers to begin projects from abstract design intent, whether described via text or uploaded as an image/sketch, and transition into structured, modular architecture in seconds.

By integrating closely with CELUS' reusable design block system (CUBOs) and Components, the Design Assistant serves both novice and expert engineers by simplifying early-stage architectural decisions and enabling faster transitions from idea to implementation.

The Design Assistant interprets textual or visual input (such as PDF schematics or block sketches) and transforms it into structured functional diagrams. Accessible from the Welcome Page or directly within the Design Canvas, it supports both ideation and iterative development by:

  • Parsing textual prompts to generate system-level architectures

  • Interpreting uploaded sketches to create draft block diagrams

  • Suggesting functionally appropriate CUBOs for each module

  • Retaining session context and supporting multilingual prompts

The assistant dramatically reduces time to first prototype and lowers barriers for both new and experienced users.

How to interact with Design Assistant

Accessed via the Welcome Screen or directly on the Design Canvas, the tool assists at every stage, from ideation to refinement.

From welcome screen

Design Assistant_Welcome Screen

Design Assistant at Welcome Screen

From Design Canvas

Click on Design Assistant Button

Design Assistant_Design Canvas

Design Assistant panel on the Design Canvas

The Plan button under the message box sets how the assistant works: Plan and check asks, plans and checks the design; Quick draft makes a fast first diagram without checks. Under Tools you can switch on Web search and Faster answers. The icons at the top of the panel open Custom instructions (instructions the assistant follows in every conversation, for this project or for all your projects) and Design intent (the intent, plan and verification it captured for the project).

Design Assistant_Plan Selector

Design Assistant: Plan selector

a) Open-ended prompts

Use for high-level ideation. Example: “Design a smart home controller.” The system proposes a baseline architecture using common functions like sensors, microcontrollers, wireless modules, etc.

Design Assistant: Open-Ended Prompt

b) Specific prompts

Useful for iterative edits or targeted additions. Example: “Add a Bluetooth module and connect it to the microcontroller.” Design Assistant will place the appropriate blocks with the matching connections.

Design Assistant: Specific Prompts

c) Visual input support

PDFs or image files of block diagrams are processed to auto-generate a structured project base. Alternatively, you can add a text prompt alongside the image to clarify your intent or provide additional instructions.

Convert a Project from Image to Canvas

Core capabilities

a) Design automation

  • Add/remove/replace functional blocks

  • Modify or create signal connections

  • Auto-generate layouts from image/PDF input

  • Handle sequential prompts and compound instructions

Specific_Promt

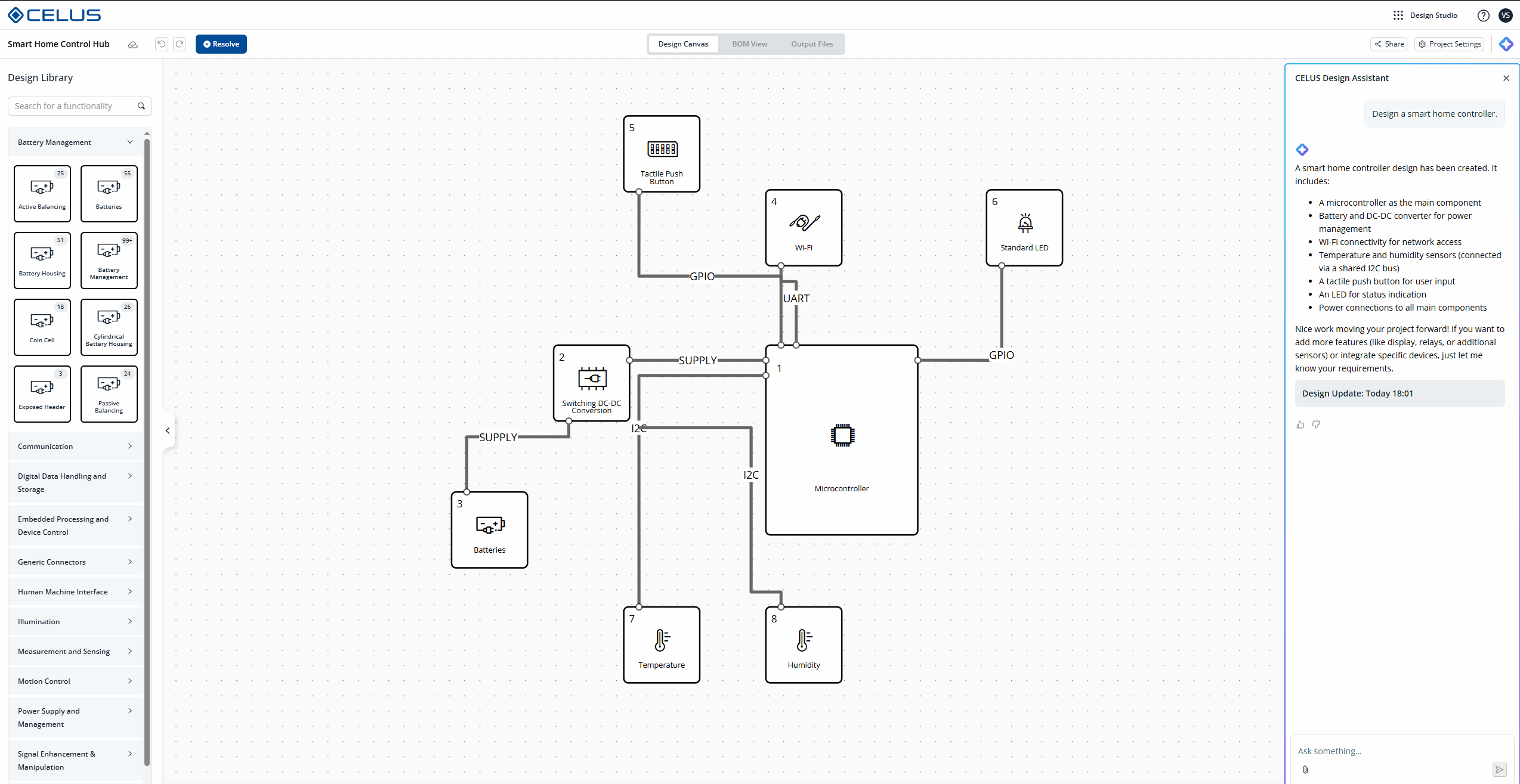

Design Assistant: Add a Functional Block

b) Distinctive features

  • Context-aware memory across user sessions

  • Multilingual support

  • Real-time control of the Canvas

  • Deep integration with CUBO suggestions

Example Interaction:

  • "Add LED to the microcontroller."

  • "Add one more."

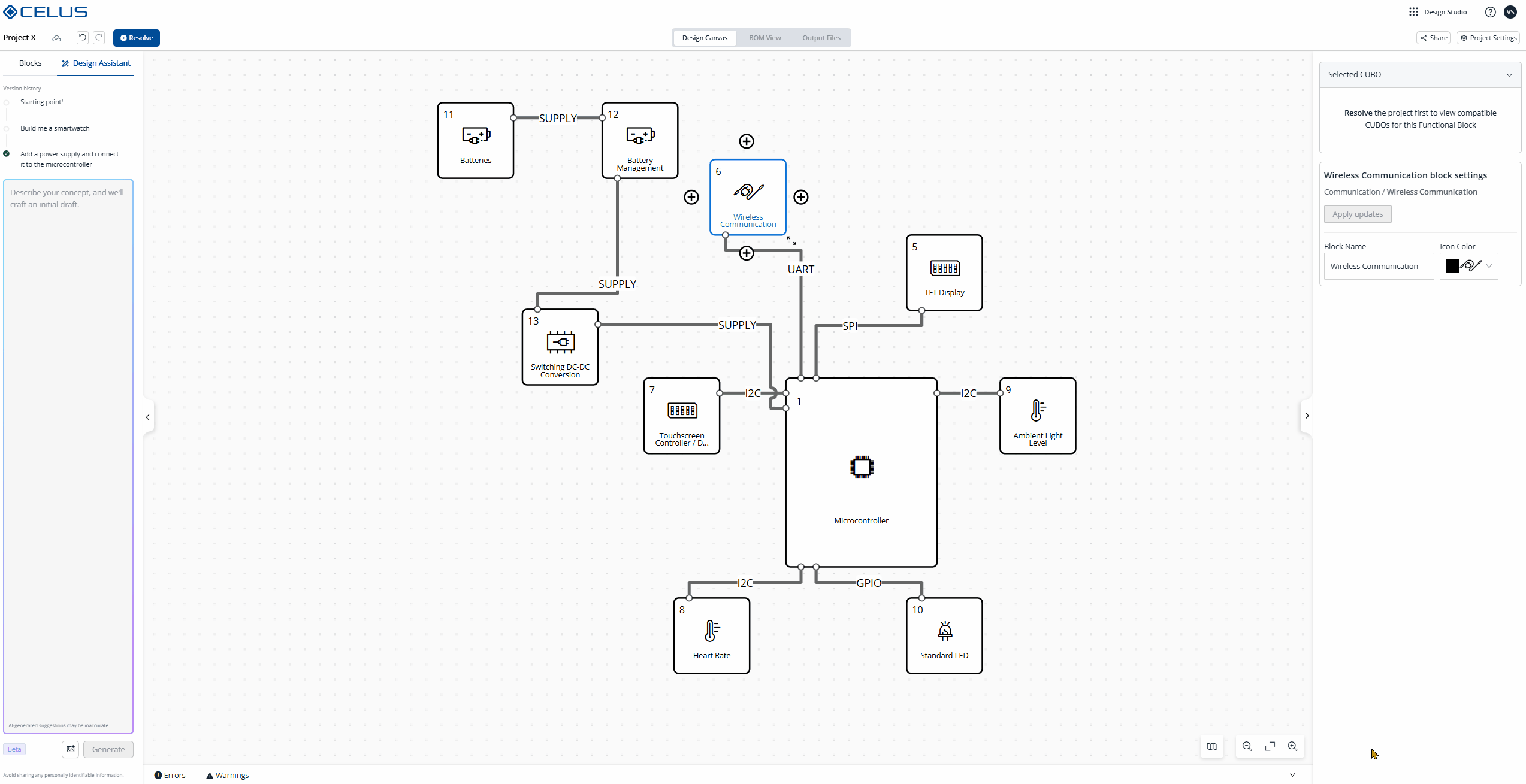

Design Assistant recognizes “one more” as a continuation and connects an additional LED.

Creating complex projects with Design Assistant

Design Assistant supports both exploratory and structured design flows. A complex system design typically begins with an open-ended prompt, followed by iterative refinement using specific prompts.

Sample Workflow:

Open-Ended Prompt: Start by describing a broad system objective. Example: "Design a smart home system capable of controlling lighting, environmental monitoring sensors, and audio devices."

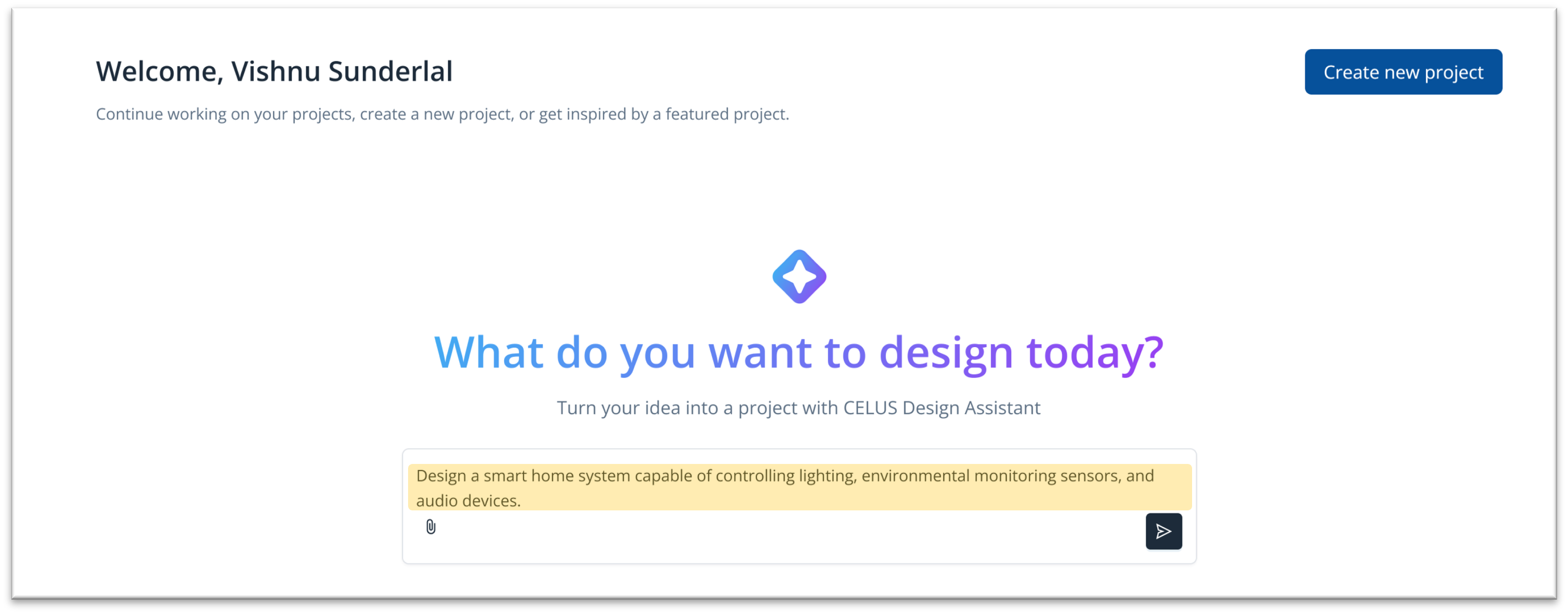

Design Canvas_Open Promt_Step1

Open-Ended Prompt provided in Design Assistant

Design Assistant Output: The platform generates an initial functional block diagram, including controllers, lighting interfaces, sensor blocks, and audio modules.

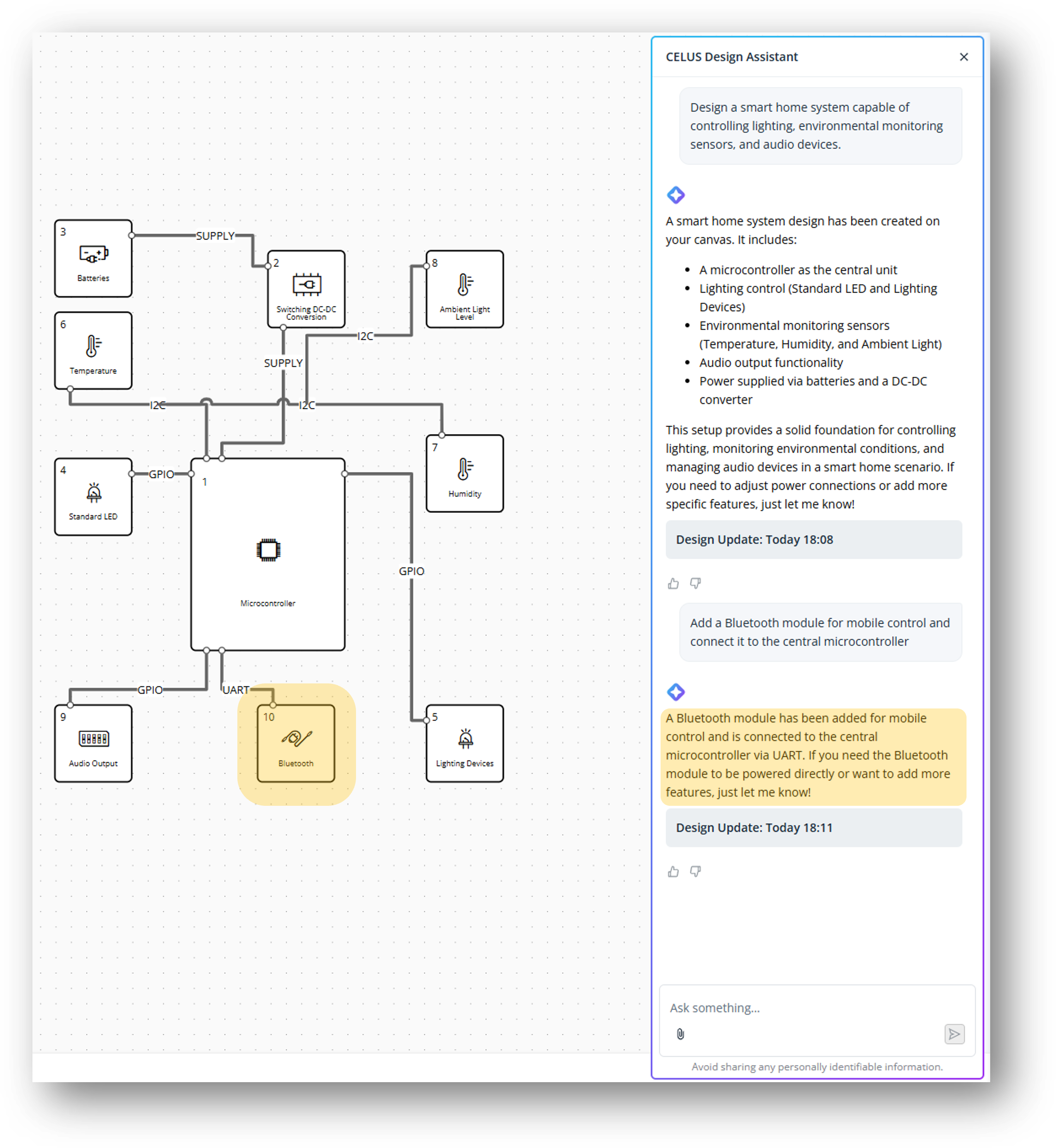

Specific Prompt: Refine or expand. Example: "Add a USB-C connector to power the board."

Design Canvas_Specific Promt_Step2

Specific Prompt: Add Functionality Blocks

Iterative Expansion: Continue prompting with targeted actions. Examples:

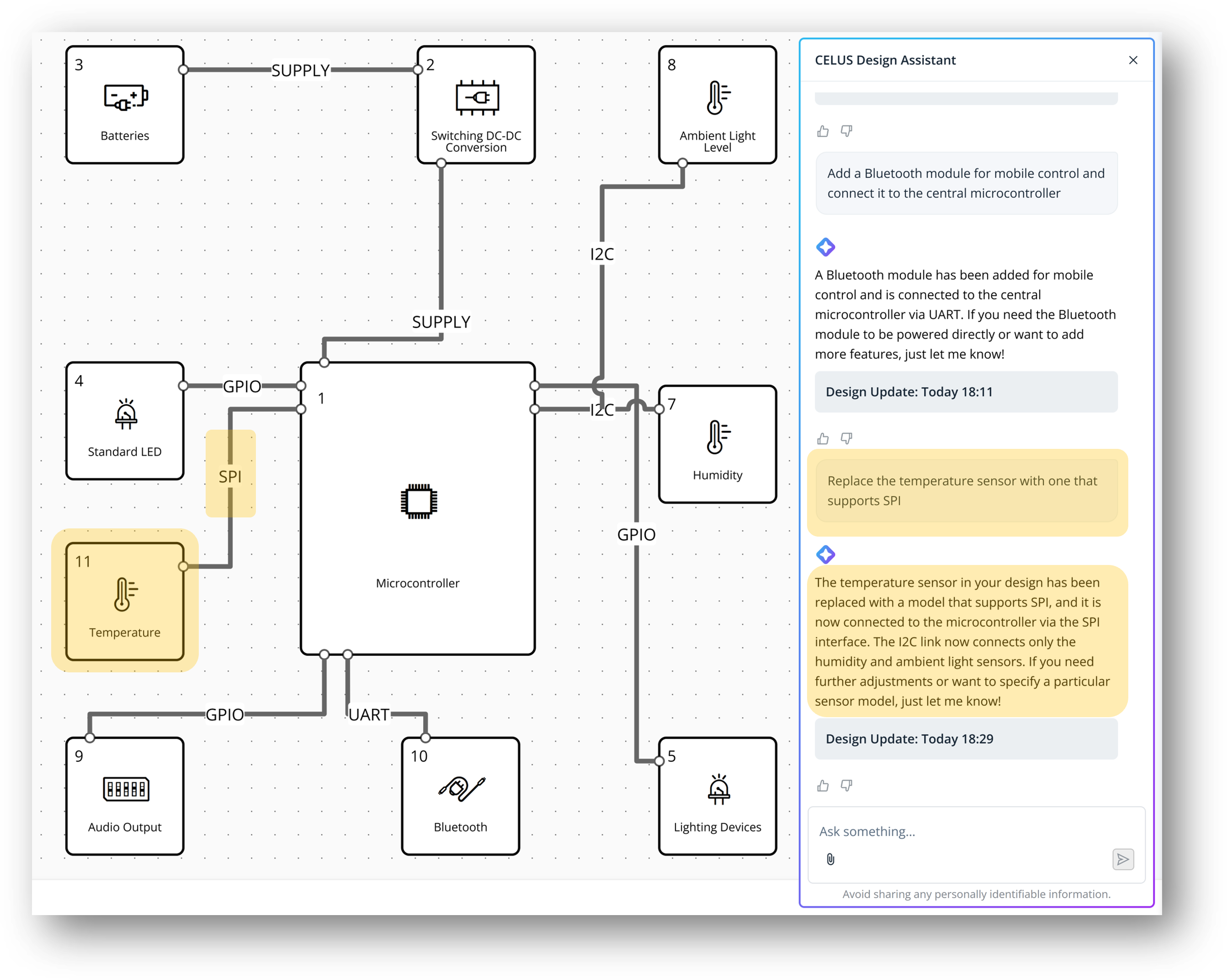

  • "Replace the temperature sensor with one that supports SPI."

  • "Show compatible audio amplifiers for this system."

Design Canvas_Specific Promt

Iterative Prompt: Add or Replace a Port or Functionalities

Visual Confirmation and Adjustment: Review the Canvas to visually confirm and adjust the proposed design. Use drag-and-drop or manual tools for further edits. For detailed guidance on configuring your project in Design Canvas, please refer to the dedicated configuration page.

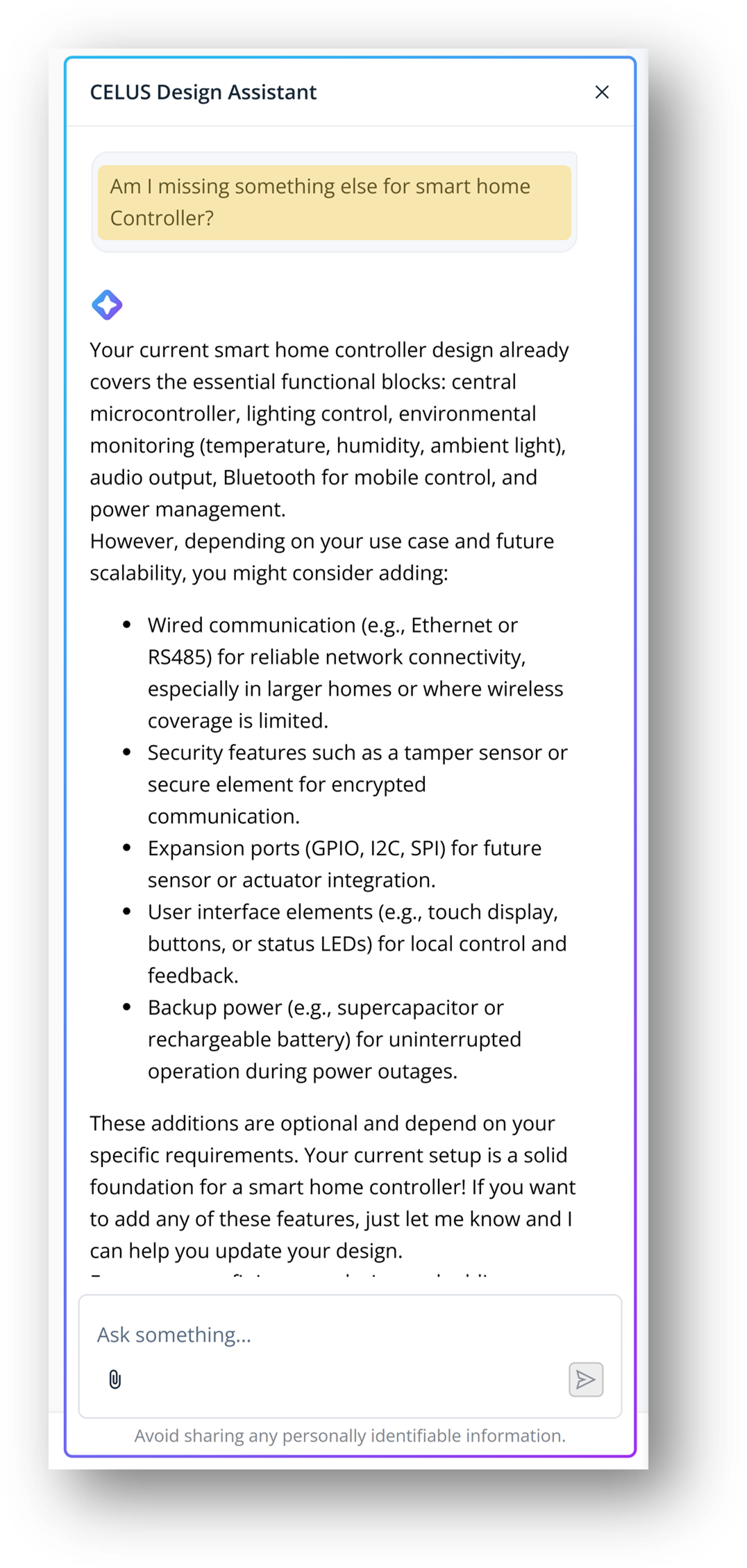

Coverage Check and System Validation: Once you believe the system is complete, you can validate it contextually by asking: "Am I missing something else for smart home systems?" The Design Assistant will then analyze your current project structure and suggest additional components or functional blocks to enhance coverage and completeness.

Design Canvas_Specific Promt_Step4

System Validation and expansion of Project

Constraints of Design Assistant

  • Max text length at a time is limited to 20.000 characters

  • Max file size for upload is 20 MB

  • One file per text is supported

  • Only PDF and Images are supported for upload

The Design Assistant can make changes directly on the Canvas. On other pages, such as Matching CUBOs, BOM View, and Output Files (the Download panel), it provides guided instructions when requested.

Start using CELUS Design Platform and stay tuned for new updates

Design Assistant: Fast-track your project creation with text-based input

Overview

This tutorial introduces the CELUS Design Assistant, a new AI-driven feature that allows users to generate Project by simply describing their design requirements in natural language. Instead of manually selecting blocks, users can write prompts like smart temperature sensor, and the platform automatically places and connects the required Functional Blocks. The Assistant also supports iterative prompts, typo tolerance, and real-time updates to the system design.

Accelerating system design with CELUS Design Assistant

Creating functional block diagrams is a fundamental but often time-consuming part of the electronics design workflow. The CELUS Design Platform introduces a powerful feature, the Design Assistant, which enables engineers to accelerate this task using natural language input.

The Design Assistant allows users to start with a blank project canvas and simply describe the desired system behavior. For example, by entering smart temperature sensor, the Assistant populates the canvas with Functional Blocks such as a power supply, microcontroller, sensor, and visual indicators.

Users can continue building on the initial prompt. Typing add wireless module seamlessly integrates wireless communication blocks. Even imprecise input, such as typos or partial instructions, is handled intelligently. The Assistant adapts, updates the canvas, and maintains functional coherence.

Rather than navigating extensive block libraries, users can prototype complex systems step-by-step or in a single descriptive prompt. This reduces cognitive load, shortens the learning curve, and increases productivity, especially for new users or during early-stage ideation.

Conclusion

The CELUS Design Assistant redefines how functional architectures are created. It enables faster iteration, intuitive interaction, and scalable complexity management, directly from textual input. This tool exemplifies CELUS’ mission to automate and simplify electronics design without compromising precision or flexibility.

Design Assistant: Generate a project from hand-drawn or reference images

Overview

This tutorial showcases the image-to-design feature of the CELUS Design Assistant. Instead of manually recreating Projects from sketches or manufacturer reference images, users can upload a photo, and the platform automatically generates a functional system design on the canvas. The tool supports further refinements through text-based prompts, making it a hybrid workflow of visual and textual input.

Design Assistant: From image to intelligent architecture

For engineers who prefer whiteboards and sketches over paragraphs of system descriptions, CELUS now offers a smarter and more intuitive way to start your hardware design: image-based input for block diagram generation.

Whether it’s a napkin sketch from a brainstorm session or a reference diagram from a component datasheet, the Design Assistant can interpret visual system representations and convert them into CELUS-compatible block diagrams. Using the new image upload function located next to the Generate button, users can import images that depict their intended architecture.

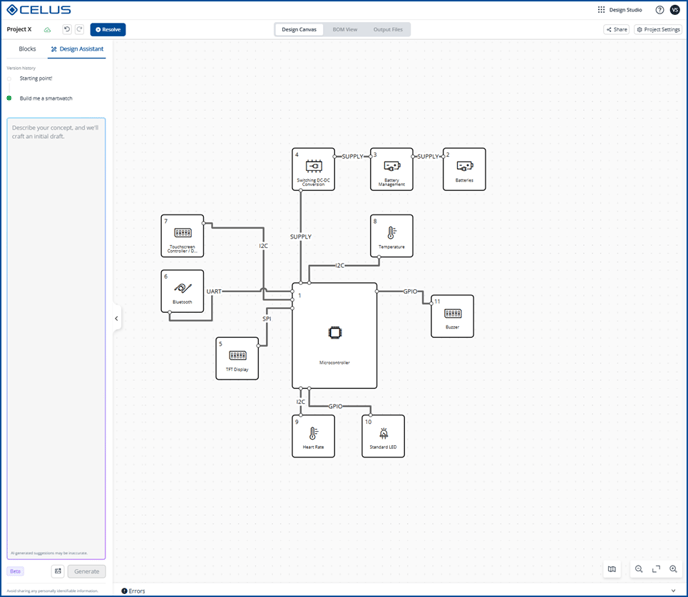

Once uploaded, the AI scans the image to identify key functional elements such as power supplies, sensors, microcontrollers, or connectivity modules. The result is a populated design canvas that mirrors the diagram’s structure. For example, a rough sketch featuring a battery, MCU, temperature sensor, and wireless module gets accurately translated into functional blocks, automatically wired and ready for further editing.

Post-generation, users can refine the design through text prompts, such as adding a USB connector, or manually using standard CELUS tools. This hybrid workflow enables fast iteration from visual concept to executable system architecture.

Conclusion

The CELUS Design Assistant’s image input functionality streamlines the transition from concept to design. It enables faster iteration, intuitive interaction, and scalable complexity management, directly from textual input. This tool exemplifies CELUS’ mission to automate and simplify electronics design without compromising precision or flexibility.
