CUBOs

CUBOs are knowledge-enriched modules with all the required information an engineer needs to develop hardware. Improve the transmission of industry knowledge and make block diagrams smart while shortening the time to find the right applications.

Talk to a CUBO Expert Now!
module.hero_media.hero_img.alt

Datasheets Redefined

What is a CUBO?

A CUBO is an all-inclusive digital datasheet that revolutionizes the way electronics is developed. Bursting with essential information like a well defined application ready to use by any EDA, a Bill of Materials, specifications, netlist and interfaces.



The CUBO goes above and beyond by providing enriched information on component placement, pricing, availability, and comprehensive documentation. CUBOs empower engineers to bring their ideas to life without the hassle of extensive research.


Deep Dive

Information in a CUBO

  • Specifications
    It has all the specs associated to its components, just like a datasheet

  • Application
    Each CUBO represents a well-defined application of an electronic component, e.g. an I2C environmental sensor that works at 3.3V

  • CAD Files
    CUBOs contain schematic, netlist, layout, and bill of materials (BOM) of the associated application

  • Interfaces
    How does the CUBO connect with other CUBOs?

  • Supply Chain Information
    Updated lifecycle information for every component of the CUBO

  • Optimization Factors
    Price, size, efficiency…

Deep Dive

CUBO Use Cases

CUBOs harness the incredible capabilities of the CELUS Design Platform, revolutionizing the way components are discovered and utilized. Take organization and efficiency to a whole new level. Say goodbye to countless hours of digging through scattered resources and dedicate more time to focus on what really matters—innovation and creativity.

Our platform automatically transforms hardware architectures into EDA projects in seconds, enabling designers to access and leverage components and their applications efficiently.

CUBO Use Cases

Here are some examples of CUBOs employed in projects developed by engineers using the CELUS Engineering Platform.

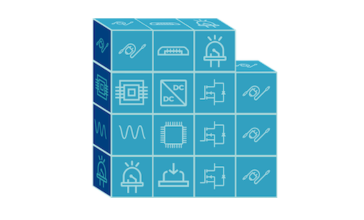

  • Robotic Arm Controller

    Explore the capacity of MCUs in combination with dual half bridge motor drivers to control 3 DC motors.

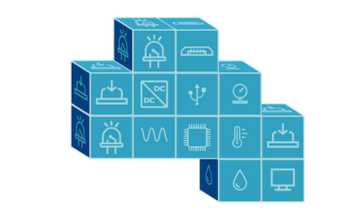

  • Weather Station

    Gather environmental information and present it on an OLED Display. Use a push button to toggle between the information of the different sensors.

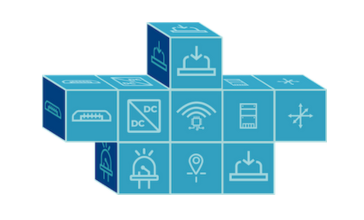

  • WIFI & Bluetooth GPS Position Tracker

    Powerful board with a GPS receiver and a wireless capable MCU that can send information via Bluetooth or Wi-Fi or store it in an SD card.

Additional resources

Next Steps for Automating Your Electronics Design Process

  • Datasheets Then and Now

    This blog covers how electronics datasheets have evolved over time and explains the concept of the CUBO.

  • CUBOs in Action

    Learn more about the CELUS Engineering Platform and how it enables a smarter hardware design process.

  • Contact Us

    Speak to our Application Engineers for any open questions around CUBOs and the CELUS Engineering Platform.
