Complete Your Project





Complete your design in Autodesk Fusion



Video Tutorial: Complete your design in Autodesk Fusion



Before proceeding with component placement on the PCB board, ensure that all the CUBO™ connections in your Design Canvas project are established between the components in your PCB Schematics.

1. Open Autodesk Fusion Electronics Design workspace

• Open Autodesk Fusion and navigate to the Electronic Design workspace.

• In the top-left menu, click File → Upload

• In the Upload dialog:

  • Click Select Files

  • Choose the schematic file (*.sch) downloaded from the CELUS Design Platform.

  • Click Upload



A dialog will prompt you to create an Electronics Design File linked to the schematic. This management file binds PCB Schematic and Layout data in Fusion. Click OK to continue.

After upload, two files will appear in the Data Panel on the right:

• The schematic file

• The linked electronics design file

2. Explore Schematic Sheets

• Double-click the Schematic file to open it.

• Use the "Sheets" panel at the bottom to navigate across different Schematic sheets.

  • Each sheet represents one resolved CUBO™ from the CELUS Design Platform.

3. Export Components into Fusion Hub Library

To enable full component editing and customization, create a local library from the schematic:

• Click the Library menu on the top toolbar.

• Select Export Libraries

• In the dialog:

  • Choose Merge into One Library

  • Confirm with OK

• Another prompt will appear asking where to save.

  • Click Upload to store the library in the current working project directory.

A new library file .lbr file will appear in the Data Panel on the left once uploaded. You can double-click it to open the library



4. Replace Source Libraries with Editable Fusion Library

We have just exported the components in our schematic into a Fusion Hub electronics library, however the components on our schematic are not yet linked to the ones of the newly created library. To be able to view and edit the components on the schematic, we need to replace the original source libraries from our schematic with this new library.

• Go back to the schematic editor.

• In the Components panel (right side):

  • Open the dropdown for "All Libraries" and filter to "In this Design".

  • This will filter the visible libraries to include only the ones used in this design

  • All current libraries will appear greyed out, indicating they are unavailable.

• Right-click each greyed-out library and choose Swap Library in Design.

• A prompt will appear, asking you to select the new target library:

  • Select the newly uploaded Fusion Hub library

  • Click Swap



You'll notice that the library icon changes from a hard drive to the Fusion Hub symbol, and it is no longer greyed out. This means that the library on the design in now available. Repeat the process until you have replaced all libraries in the design with the new Fusion Hub Library.

Now, all your components are linked to the Fusion Hub Library, making them easy to edit and update.



5. Edit Components and Update the Schematic

• Right-click any component and choose Edit Component to open it in editing mode.

• After modifications:

  • Return to the schematic view

  • Click Update Design from Library under the Library toolbar to apply changes.



By setting up our libraries properly from the beginning, we ensure a smooth workflow, making it easy to edit and manage components.



---



Complete your design in Autodesk Eagle

Before proceeding with component placement on the PCB board, ensure that all the CUBO™ connections in your Design Canvas project are established between the components in your PCB Schematics.

1. Open Project in Autodesk Eagle

Once you have downloaded the files, double-click on the desired Eagle Schematic file to open the file in Autodesk Eagle or go to Eagle’s Control panel, then click on File > Open > Schematic

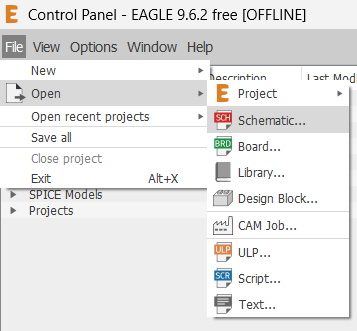

Autodesk Eagle: Open Schematic file



Select the desired file and press Open. It will open Schematic file in Eagle

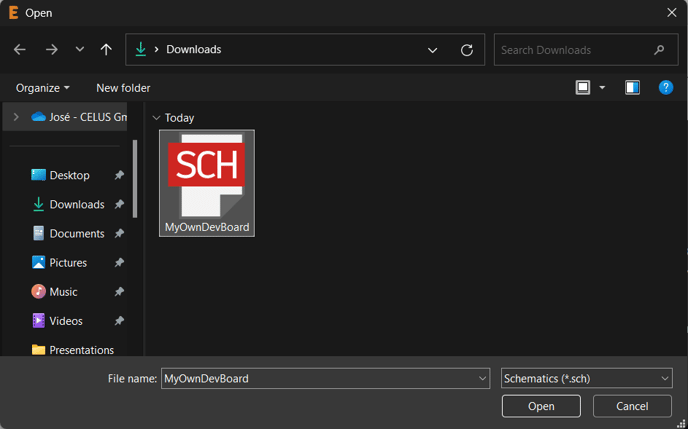

Autodesk Eagle: Open the desired file

2. Generate PCB Layout from Schematic

Once you have opened the Schematic file, you will see one CUBO™ design per Schematic sheet.

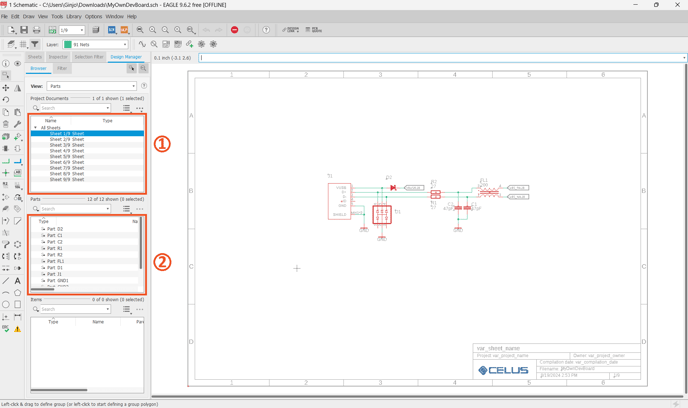

Eagle Schematic: 1) The schematic sheets from the project 2) The list of Components from the project



To start designing a new PCB board for your project, click Generate/switch to board in the top Tool Bar.



Swtich to board



A warning window pops up asking you to confirm the creation of Eagle PCB board (.brd) from the Schematic. Click Yes to proceed.

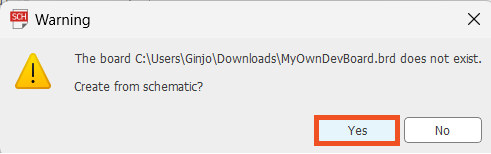

Autodesk Eagle: Warning Window to confirm the PCB board creation



Once you approve creation of new PCB board, a PCB board file opens with the components outside the board layout area.



Autodesk Eagle PCB: 1) Component Footprints 2) Board layout area



Now it is time for you to place components on the PCB board, do the routing and finish the layout. Don’t forget to save!



---



Complete your design in Altium Designer

Before proceeding with component placement on the PCB board, ensure that all the CUBO™ connections in your Design Canvas project are established between the components in your PCB Schematics.

To open the downloaded project , you have two options: either double-click the project_name.PrjPCB file or open it directly in Altium Designer. If you choose the first method, proceed to How to Sync between Schematic and Layout section.

The files you have downloaded are compressed into a zip file format. Please make sure to extract (unzip) them before attempting to open them. After extracting the files, you will gain access to the desired project files.

1. Open Project in Altium Designer

Open the Altium Designer's home page. Click File from main menu and then click Open Project.



Altium Designer: Open new project



An Open project window will appear. In the LOCATIONS section on the left, select your Workspace. The central area will display all projects within that Workspace. Choose the project you wish to work on, then click Open in the lower-right corner.

If the files are not found in any predefined locations, you can click the Browse button in the bottom left corner to search for and select the desired project location.

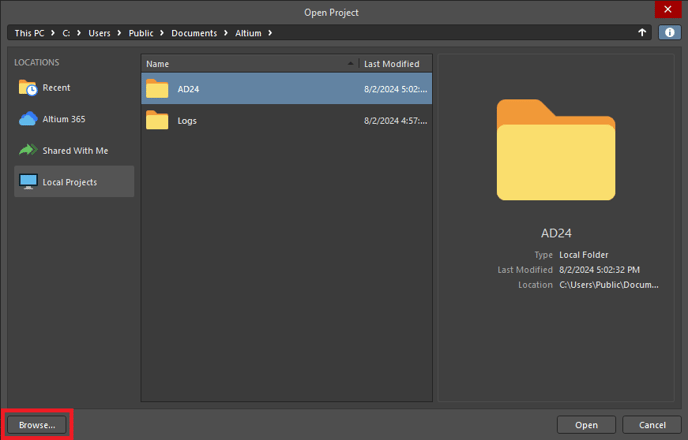

Altium Designer: Browse for the desired project file

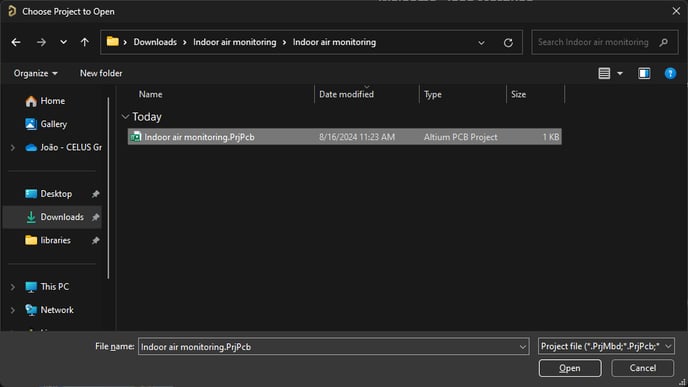

Altium Designer: Locate the project file and open



Upon opening the project, you can access the schematic and board files.



Altium Designer: Project file and associated documents



2. Sync between Schematic and Layout

The following steps outline how to synchronize the schematic with the layout. This synchronization is necessary to ensure that any connection changes are accurately reflected in the PCB layout.

First Select Update PCB Document from the Design menu



Altium Designer: Update PCB Document



A Comparator Results dialog will appear, prompting you to confirm whether to continue and create an Engineering Change Order (ECO).

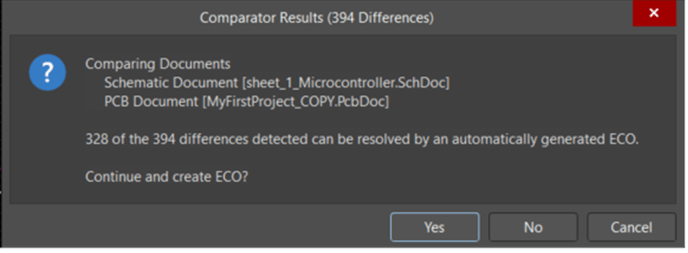

Altium Designer: Comparator Results Dialog



Once you click Yes and continue, an Information dialog will pop up, displaying the modified Component links. Click OK to proceed.

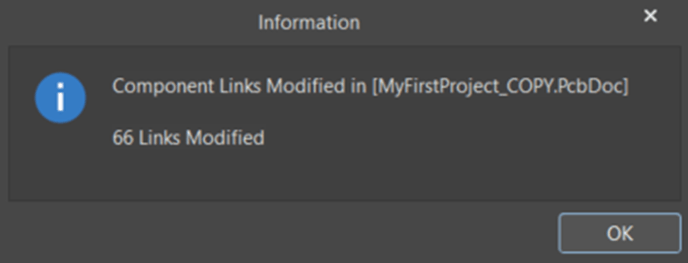

Altium Designer: Information dialog on modified Component Links



Next, the Engineering Change Order (ECO) dialog will appear, asking you to execute the changes

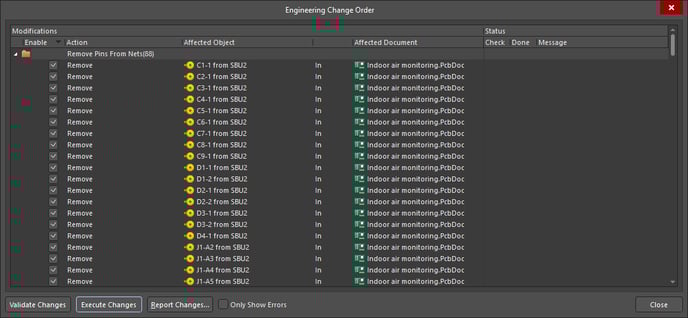

Altium Designer: Execute changes from Schematic to Layout

After completing these steps, your PCB schematics and layout will be synchronized.

Now it is time for you to place components on the PCB board, do the routing and finish the layout. Don’t forget to save!



---



Complete your design in KiCAD





Before proceeding with component placement on the PCB board, ensure that all the CUBO™ connections in your Design Canvas project are established between the components in your PCB Schematics.

1. Open Project in KiCAD

After you have downloaded the output files from Design Canvas, you can open the Zip file containing the project file (.kicad_pro), schematic files (.kicad_sch), layout file (.kicad_pcb) and frame page (.kicad_wks).

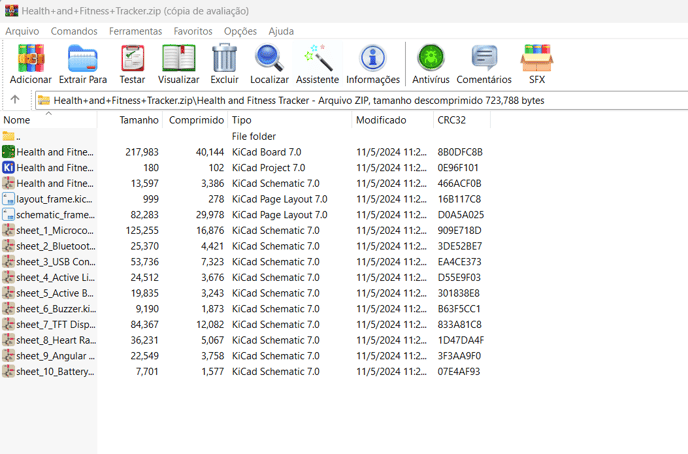

KiCAD: Output Project files



Unzip the compressed folder and open the project file (.kicad_pro) and you will see the KiCAD project.

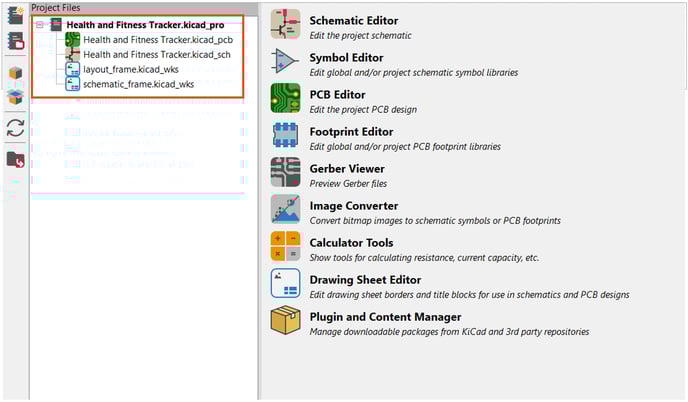

KiCAD Project



2. Sync between Schematic and Layout

When you open the Schematic file (.kicad_sch), you'll see the project structure as hierarchical blocks and each block represents a CUBO™

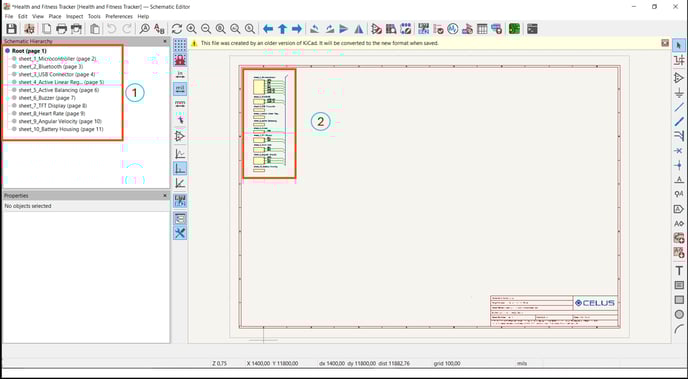

Schematic Preview: 1) Schematic Sheets from the project 2) Hierarchical blocks representing the project



Now you can switch to PCB editor.



KiCAD: PCB editor icon



When you open the PCB layout for first time, will see the layout without the Ratsnet. It happens because the layout isn’t synchronized with the Schematic.



KiCAD: PCB layout before synchronization



Before snychronizing the schematic and layout, ensure that the Ratsnest feature is enabled.

So first, enable the Ratsnet button  on the left toolbar



KiCAD: Ratsnet Enabled



To synchronize the Layout with Schematic you have to follow these steps:



Step 1: Click Tools from the Top ribbon. Then Select Update PCB from Schematic

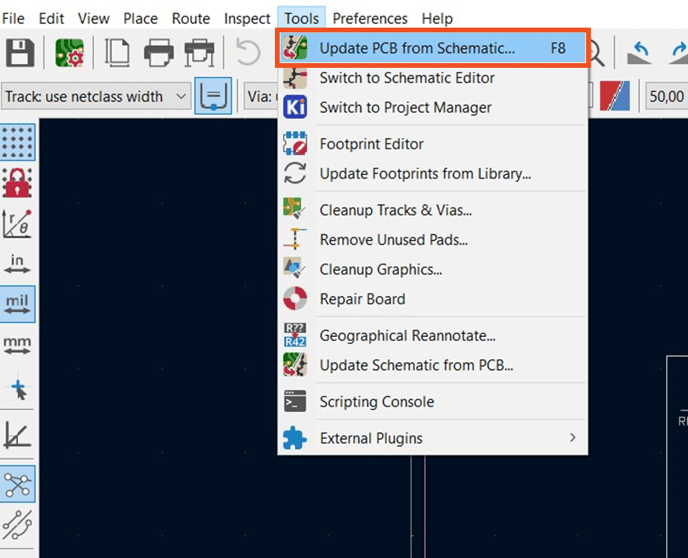

KiCAD: Update PCB from Schematic



Step 2: Select the Option 1. Then click on Update PCB

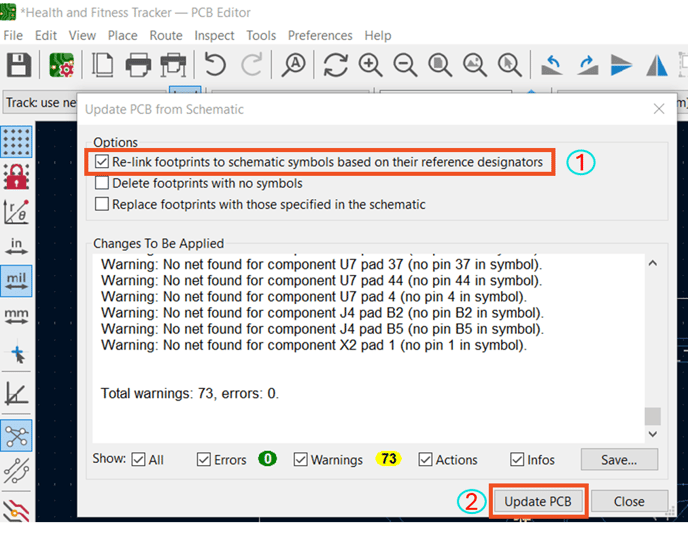

Update PCB from Schematic: 1) Re-link footprints to schematic symbols based on their reference designators 2) Click on Update PCB



Step 3: Click Close button.



Your Layout is successfully synced now. To verify the synchronization, check whether you see the Ratsnet on Layout.



KiCAD: Ratsnet on the Layout after synchronization



Now it is time for you to place components on the PCB board, do the routing and finish the layout. Don’t forget to save your project.
